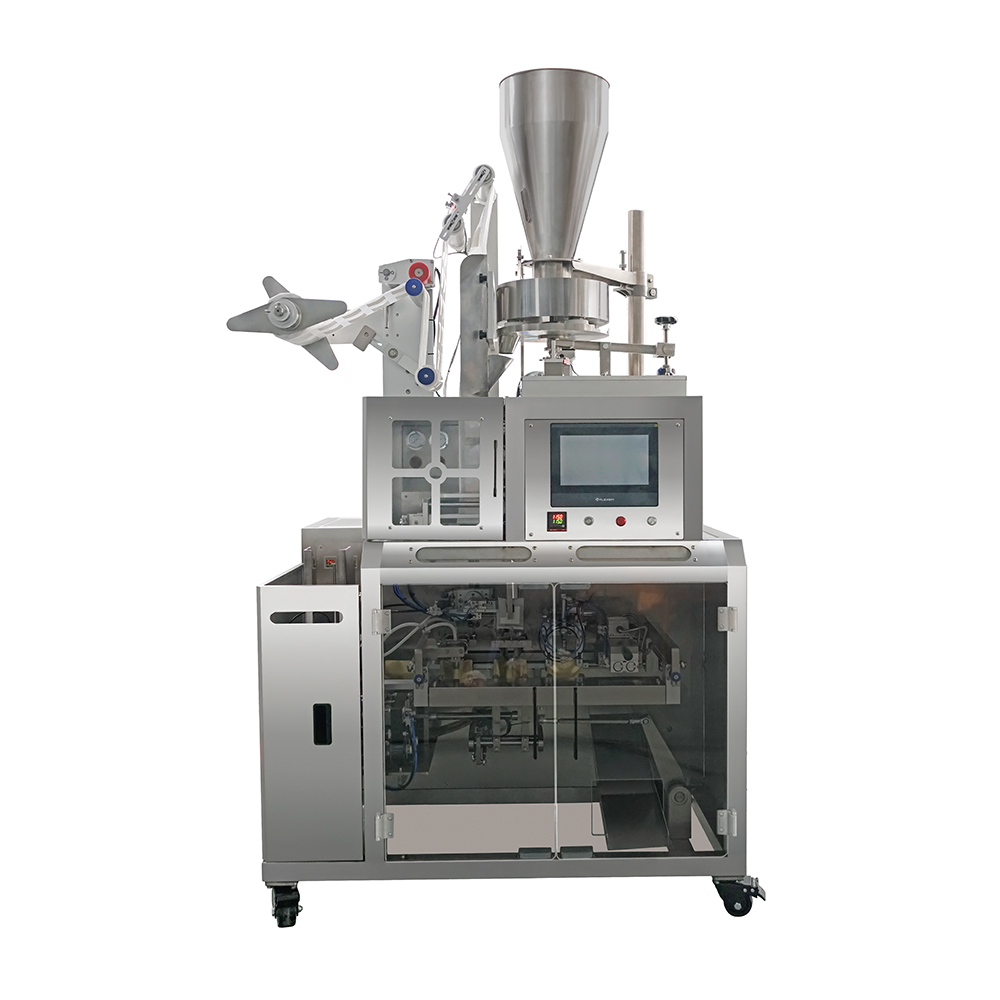

LK-180 Hanging ear coffee inner and outer bag packaging machine

1.It can automatically complete bag making, metering, blanking, sealing, slitting, counting, and print batch number according to customer requirements.

2. The 7-inch touch screen is operated in Chinese and English. The operation is simple and intuitive. The PLC control system operates more stably. The stepping motor controls the bag length. The bag length setting is convenient and stable, with stable performance, convenient adjustment and accurate detection. The intelligent temperature controller PiD automatically adjusts the temperature control to control the error range of temperature within 1 °C.

3. The inner bag is a non-woven ear bag, which is convenient and hygienic for brewing. The sealing adopts advanced ultrasonic sealing, with good sealing.

4. Packaging materials: composite film, nylon film, corn fiber, ear hanging coffee film.

Description

For:

It is suitable for one-time packaging of various materials such as ear hanging coffee, tea, medicinal tea, small particles of plants and so on.

Technical parameters:

ModelLK-180
Bag SizeInner bag: Length 70-74mm, Width 90mm
Outer bag: Length 120mm, Width 100mm
Blanking MethodScrew feeding (Vertical screw)
Packing Speed20-70 bags/min (depending on material)
Measuring Scope1-15g (depending on material)
Total Power220V / 50Hz / 3.7KW
Sealing TypeThree-side seal
