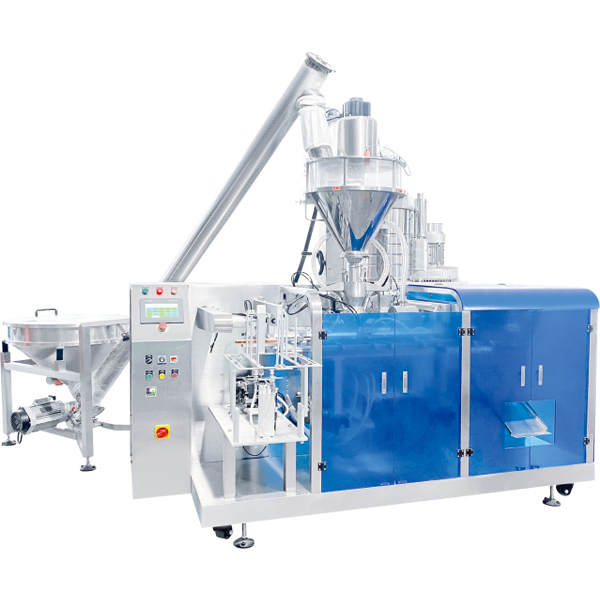

LK-SP200-F Powder bag packing machine
1.The operation is intuitive and convenient, using 7-inch touch screen PLC control, man-machine interface operating system. It is easy to adjust, and their placement of varieties can be completed within ten minutes, and it is suitablefor different types of packaging bags
2.The equipment meets the hygienic standards of food and medical machinery, and the parts in contact with the equipment are made of 304 stainless steel or other materials that meet the food hygiene requirements to ensure food hygiene and safety. The screw metering device is made of 304 stainless steels, which meets the requirements of food grade. The transparent viewing window can observe the material status in real time, and the metering error is small. Match the corresponding screw according to the material to achieve high precision and high efficiency.
3.High degree of automation, unmanned in the packaging process, automatic alarm when there is a fault, the equipment is equipped with a transparent plexiglass protection door. Oil-free vacuum pump is used to avoid polluting the production environment.
4.Packaging bag: prefabricated bag, zipper bag, back sealing bag, four side sealing bag, ironing bag, serrated bag, etc.
Description
It is suitable for the measurement and packaging of granules, liquids, powders, semi-fluids, fluids and other items in the food and industrial industries (replace the feeding device according to the different properties of the materials).
| Model | LK-SP200-F |
| Bag Size | width: 100mm-200mm length: MAX300mm |
| Packing Speed | 15-40bags/min (Depending on material) |
| Measuring Scope | 10-1000ml (Other specifications can be customized) |
| Total Power | 220V/50HZ/1.4KW |
| Weight | 350KG |
| Overall Dimension | 860x1350x1750mm |
