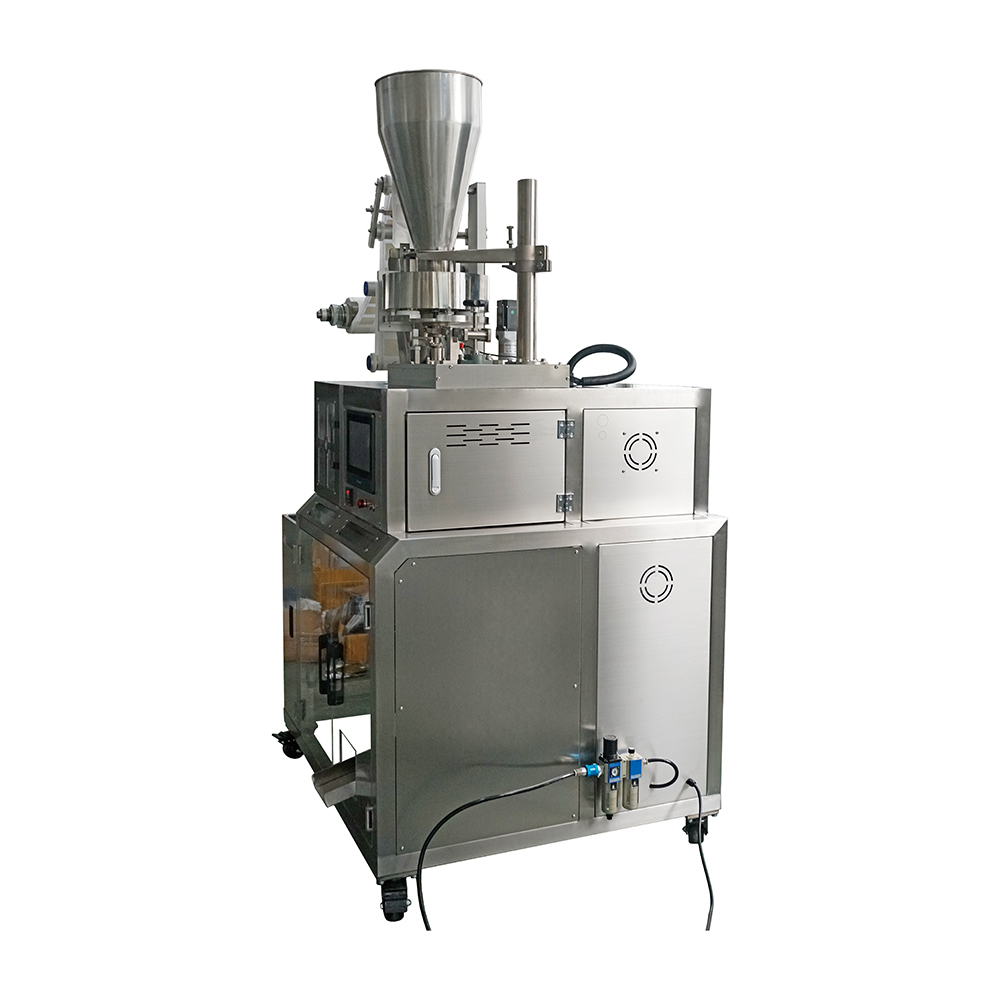

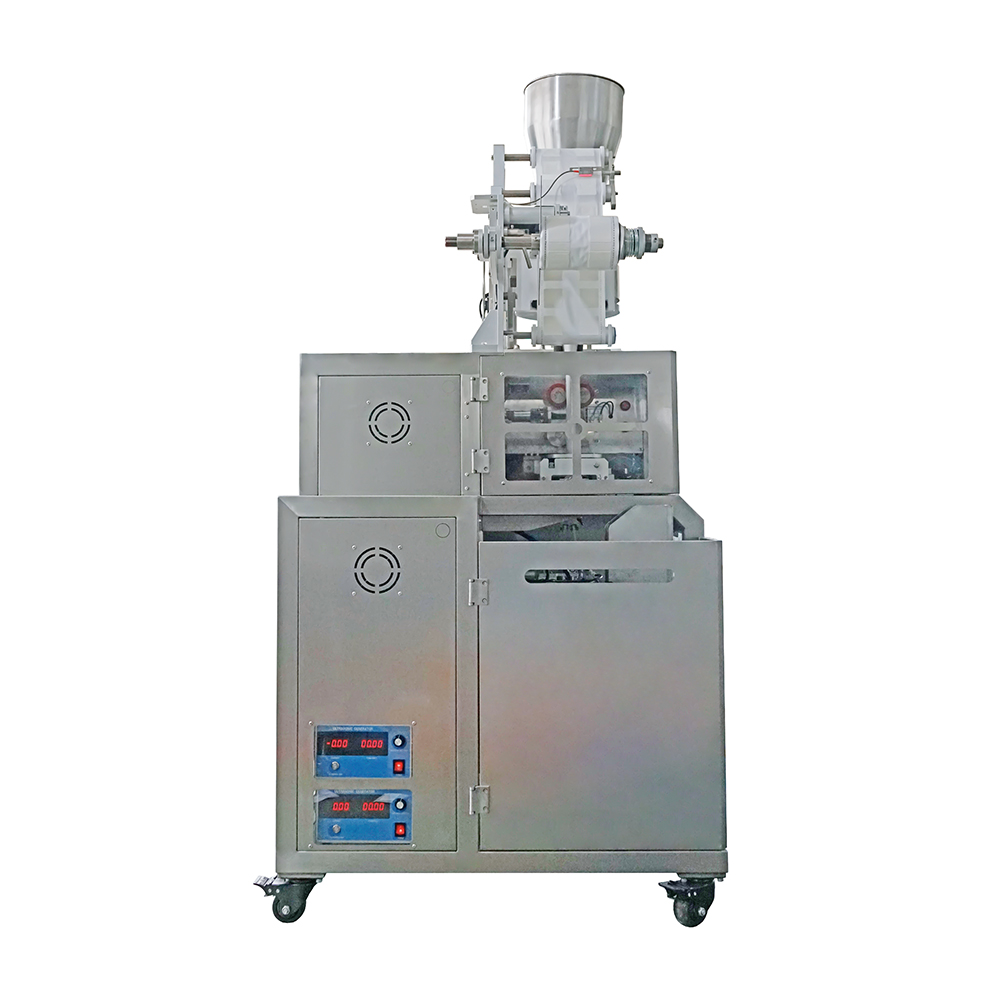

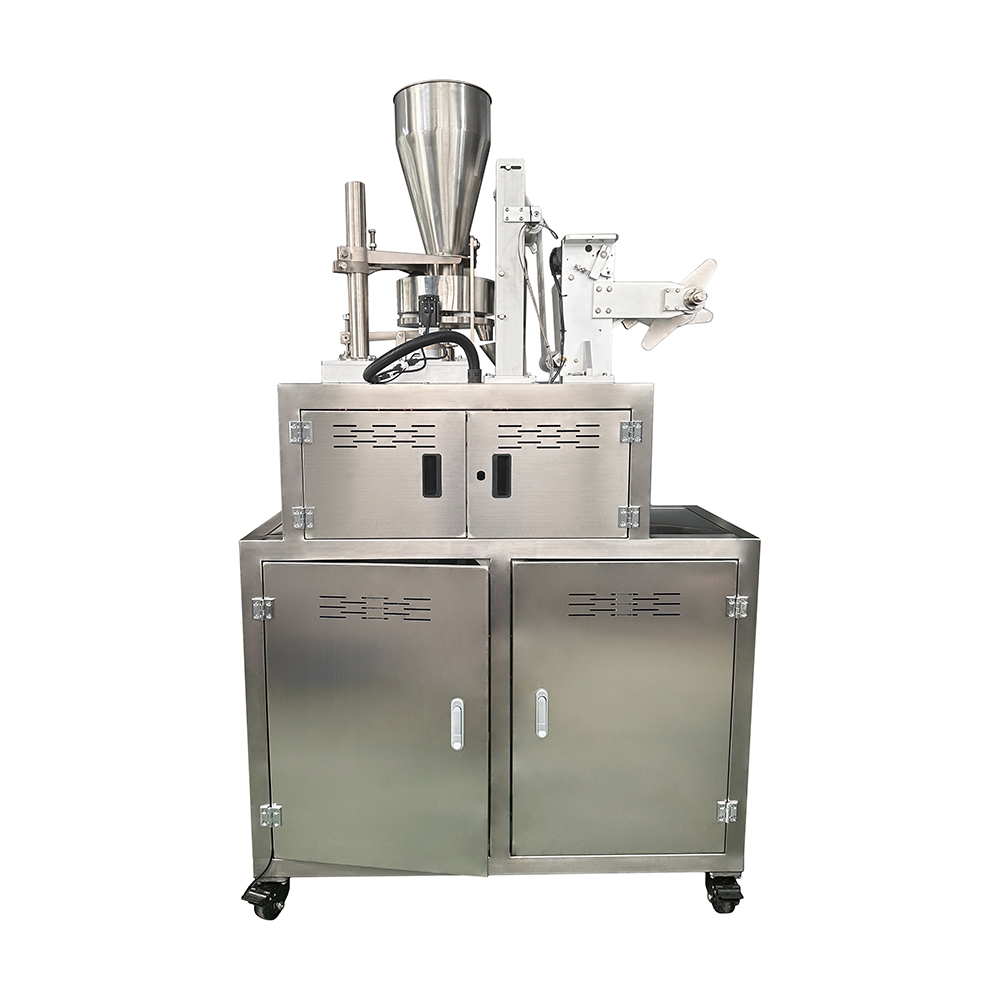

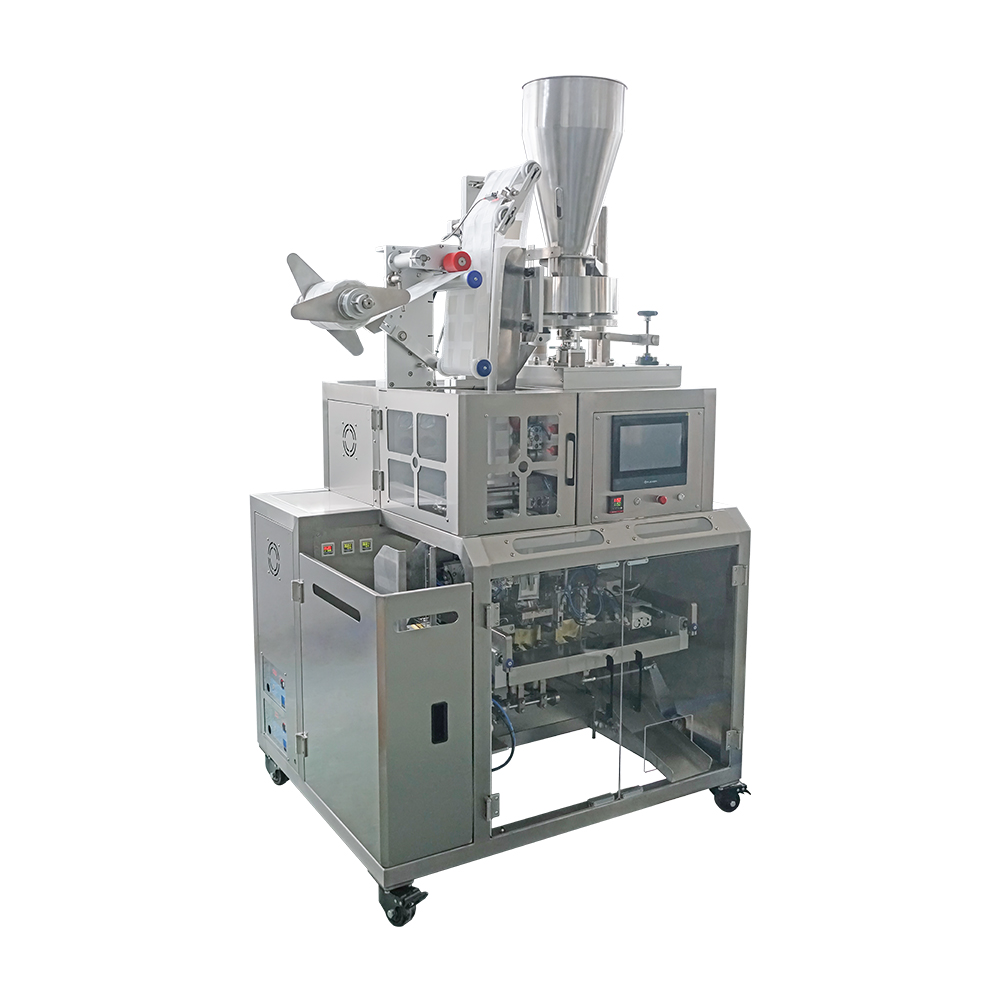

K22 bag type inner and outer bag coffee packaging machine
The bag type hanging ear coffee inner and outer bag packaging machine is an advanced technology independently developed by our company. It is a high-quality and high-performance fully automatic packaging machine. This machine has the functions of automatic bag making, measuring, filling, sealing, cutting, counting, printing batch numbers, etc. It adopts advanced microcomputer controller and servo motor to control bag length and trademark positioning. The machine has stable performance, easy adjustment, accurate detection, and intelligent control with minimal error. The corresponding particle and powder feeding mechanism can be prepared according to the different materials. Adding attachments can complete functions such as date printing, vibration cutting, and easy tearing. The whole machine is easy to operate and perfect, making it the preferred equipment for improving production efficiency, reducing labor intensity, and enhancing packaging quality in the food packaging industry.
Description
The bag type hanging ear coffee inner and outer bag packaging machine is an advanced technology independently developed by our company. It is a high-quality and high-performance fully automatic packaging machine. This machine has the functions of automatic bag making, measuring, filling, sealing, cutting, counting, printing batch numbers, etc. It adopts advanced microcomputer controller and servo motor to control bag length and trademark positioning. The machine has stable performance, easy adjustment, accurate detection, and intelligent control with minimal error. The corresponding particle and powder feeding mechanism can be prepared according to the different materials. Adding attachments can complete functions such as date printing, vibration cutting, and easy tearing. The whole machine is easy to operate and perfect, making it the preferred equipment for improving production efficiency, reducing labor intensity, and enhancing packaging quality in the food packaging industry.
This machine is suitable for granular and powdered items in industries such as coffee and health tea.
This machine can be equipped with assembly lines, with stable performance and a wide range of applications.
Three sides
| Total Power | AC220V，50-60Hz， 3.7kW |
| compressed air | Min 0.5MPa |
| Thin film materials | Packaging film with or without cursor, heat sealable |
| Outer diameter of roll film | Max：380mm |
| Inner diameter of roll film paper core | 76mm |
| packaging speed | 20-35 bags / min |
| Packaging film size | Bag width max: 90mm (inner bag), 100mm (outer bag) |
| Machine appearance dimensions | L1249mm×W975mm×H2243mm(Customizable according to customer requirements) |
| Weight | ~440kg |
| environmental conditions | Relative humidity of 30% to 90%; The ambient temperature ranges from 0 ℃ to 40 ℃ |
| bag width | 90mm (inner bag), 100mm (outer bag) |
| bag length | 90mm (inner bag), 125mm (outer bag) |
