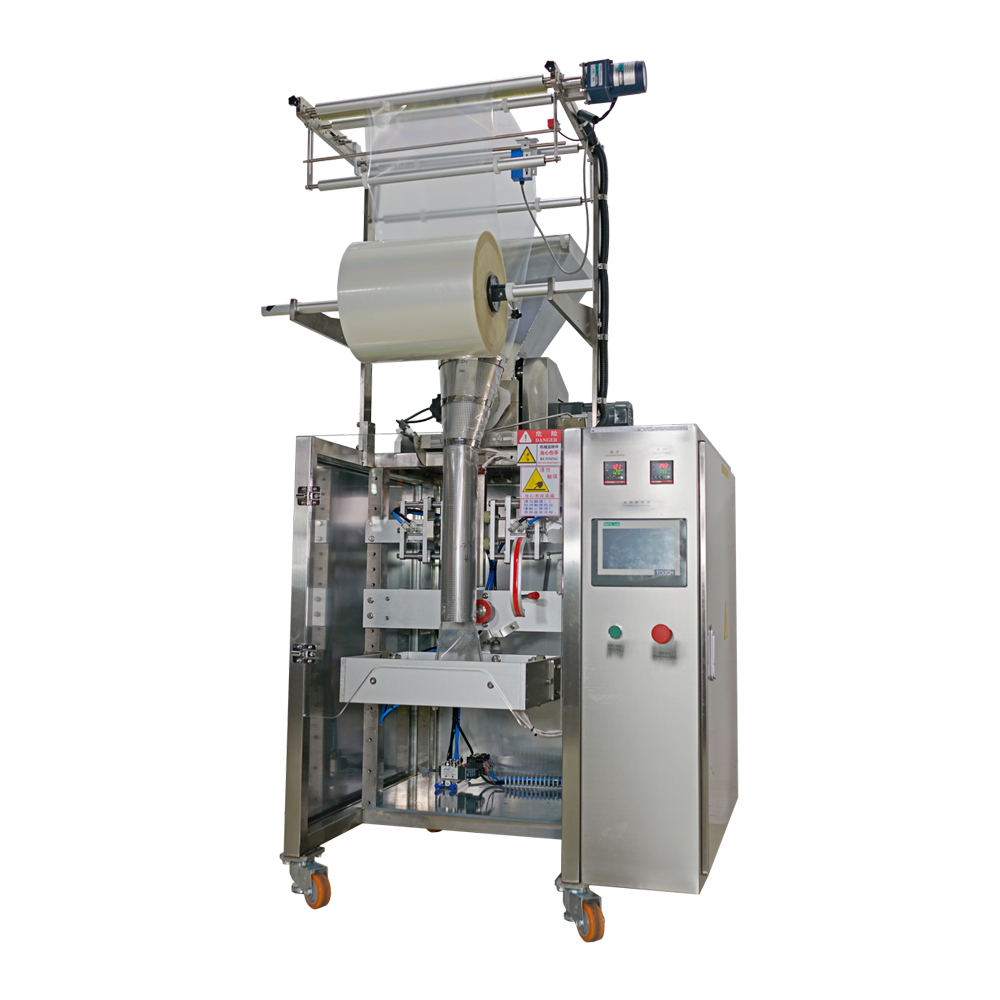

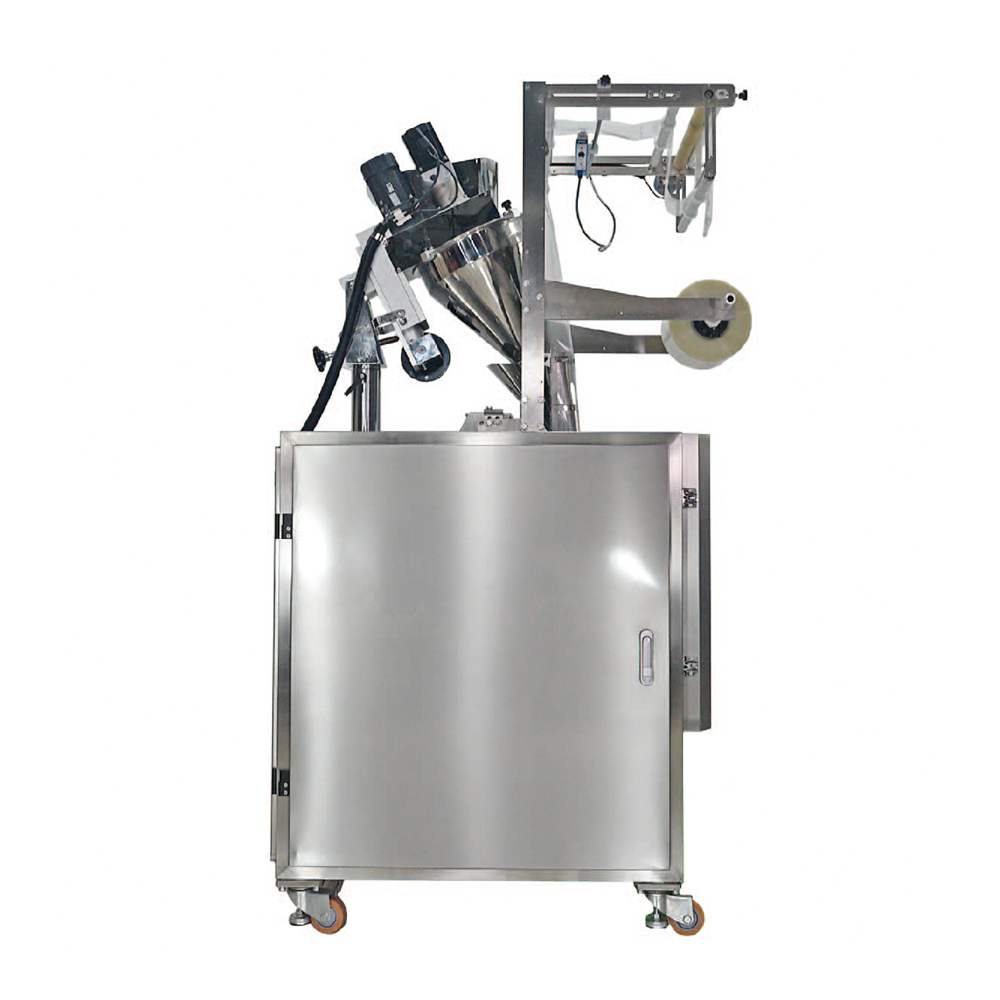

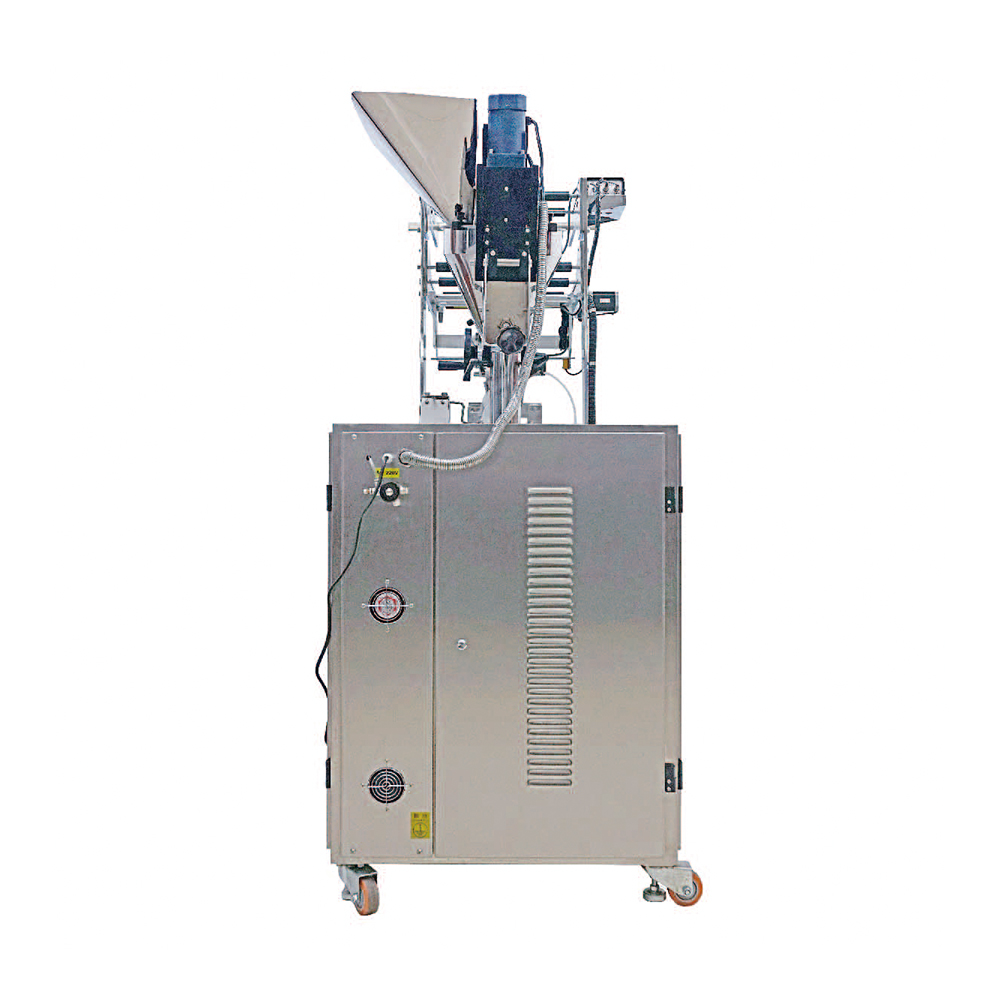

LT -80IIBF Large Weight Powder Packaging Machine
1、The machine is suitable for the measurement and packaging of large gram heavy items,such as particles, powders, liquids and sauces in food,medicine, chemical and cosmetics industries.
2、All the works of bag making,measuring, filling,sealing, cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.
3、The touch screen operation, PLC contro,drive stepper motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.
4、Packing material：BOPP/Polyethylene, Aluminium/Polyethylene, Paper/Polyethylene,Polyester/Aluminizer/Polyethylene, Nylon/CPP and so on.
Description
1、The machine is suitable for the measurement and packaging of large gram heavy items,such as particles, powders, liquids and sauces in food,medicine, chemical and cosmetics industries.
2、All the works of bag making,measuring, filling,sealing, cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.
3、The touch screen operation, PLC contro,drive stepper motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.
4、Packing material：BOPP/Polyethylene, Aluminium/Polyethylene, Paper/Polyethylene,Polyester/Aluminizer/Polyethylene, Nylon/CPP and so on.

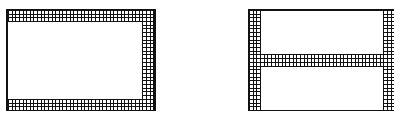

Three sides/Back sealing
| Measuring Scope | 0.1 - 1kg |
| Bag Size(L*W) | 60 - 280mm |
| 50 - 200mm | |
| Packing Speed | 10 - 30bags/min |
| Dimension (L*W*H) | 970*1100*1900mm |
| Weight | 300kg |
| Total Power | AC220V / 50HZ / 3KW |
