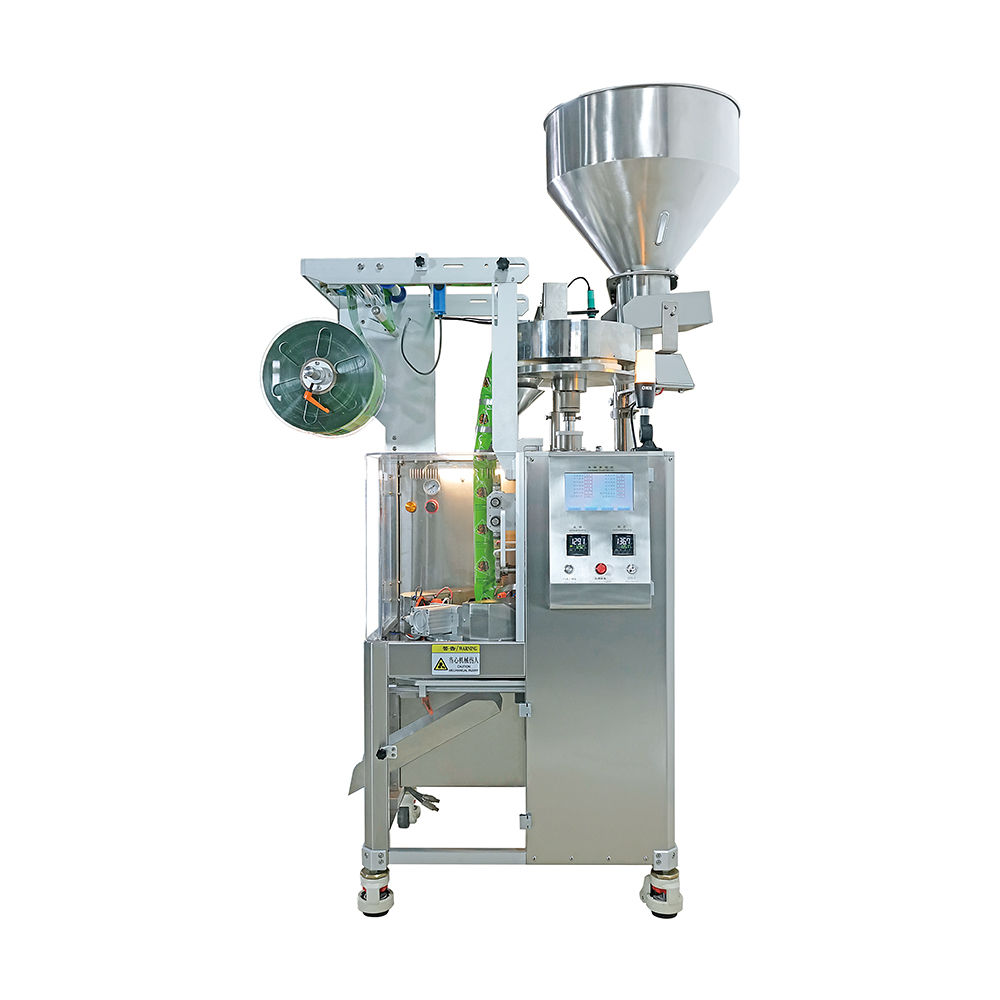

LK-JBF Powder clamp packaging machine
1.It can automatically complete bag making, metering, feeding, sealing, slitting and counting, and can be equipped with functions such as batch number printing according to customer requirements.
2. 7-inch touch screen with Chinese and English operation, simple and intuitive to operate. Adopting PLC control system for more stable operation. Servo motor controls bag length with convenient and stable bag length setting. It features stable performance, easy adjustment and accurate detection. The intelligent temperature controller adopts PID automatic temperature adjustment, keeping the temperature error within 1°C.
3、 Packaging materials: Polypropylene/Polyethylene, Aluminum Foil/Polyethylene, Polyester/Aluminized Film/Polyethylene, Nylon/Reinforced Polyethylene, Paper/Polyethylene, etc.
Description
It is suitable for measuring and packing of granule, powder, liquid and sauce in food industry.
| Model | LK-JBF |
| Bag Size | Length 30-210mm, Width 45-300mm |
| Sealing Type | Three-side seal / Back seal |
| Blanking Method | Vertical screw |
| Packing Speed | 20-60 bags/min (depending on material) |
| Measuring Scope | 1-20g (depending on material) |
| Total Power | 220V / 50Hz / 1.4KW |
| Air Supply | 0.8 MPa |
| Air Consumption | 0.6 m³/min |
| Weight | 400 KG |
| Overall Dimension | 850 × 1100 × 1900 mm |
