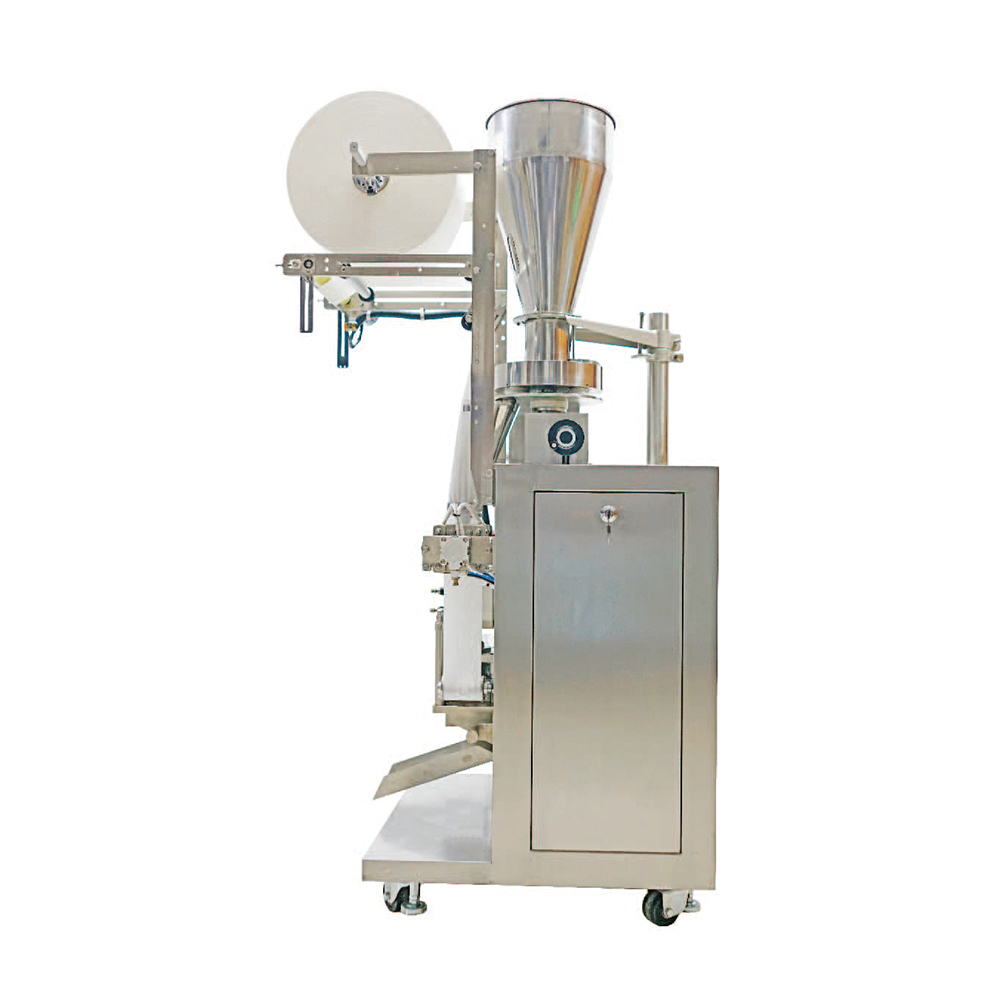

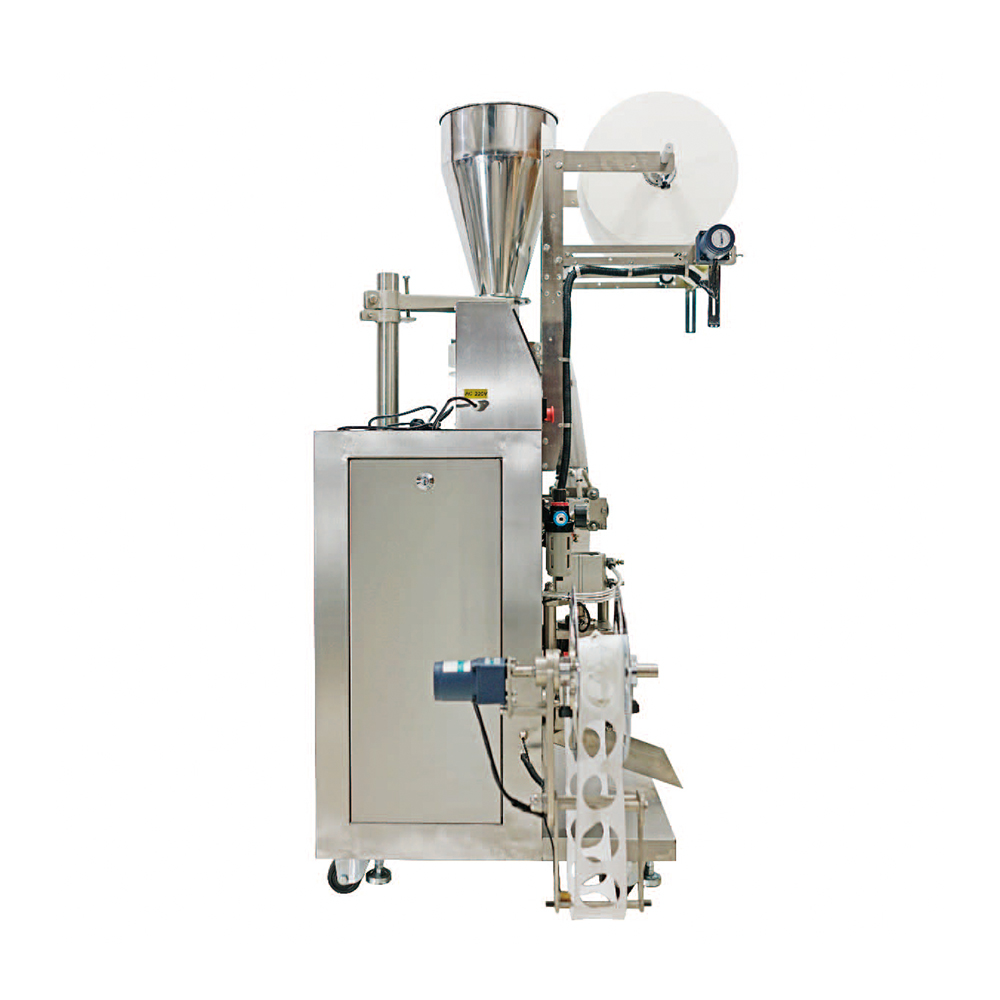

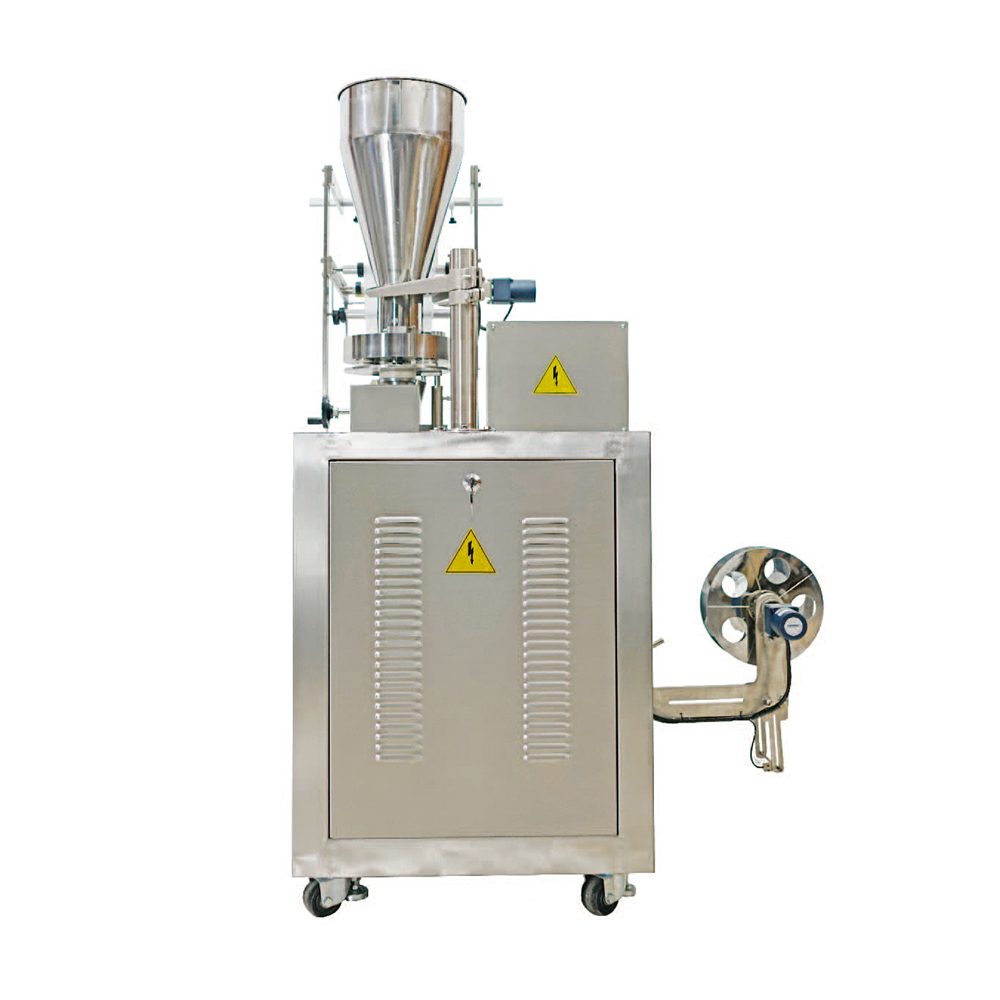

66 round cake tea bag machine
① High degree of automation, capable of automatically completing processes such as material and packaging material supply, wrapping, sealing, cutting, and finished product output.
② Using a programmable controller, the entire machine runs in a programmed manner.
③ Touchscreen human-machine interface, convenient and fast parameter setting.
④ Fault self diagnosis function, fault display is clear at a glance.
⑤ Temperature independent PID control, better suitable for packaging films of various materials.
⑥ Changing product specifications is convenient and quick.
⑦ The transmission system is simple, more reliable in operation, and easier to maintain.
Description
① High degree of automation, capable of automatically completing processes such as material and packaging material supply, wrapping, sealing, cutting, and finished product output.
② Using a programmable controller, the entire machine runs in a programmed manner.
③ Touchscreen human-machine interface, convenient and fast parameter setting.
④ Fault self diagnosis function, fault display is clear at a glance.
⑤ Temperature independent PID control, better suitable for packaging films of various materials.
⑥ Changing product specifications is convenient and quick.
⑦ The transmission system is simple, more reliable in operation, and easier to maintain.
| Total Power | AC220V，50-60Hz 1.6kW |
| air consumption | HS sealing 0.1NL/cycle |
| compressed air | Min 0.5MPa |
| Thin film materials | Packaging film with or without cursor, heat sealable |
| Outer diameter of roll film | Max：380mm |
| Inner diameter of roll film paper core | 76mm |
| Packing Speed | 10-40 bags/min |
| Bag Size | diameter 70mm |
| Dimension (L*W*H) | L1160mm×W760mm×H1835mm（Customized according to customer requirements） |
| Weight | ~400kg |
| environmental conditions | Relative humidity of 30% to 90%; The ambient temperature ranges from 0 ℃ to 40 ℃ |
