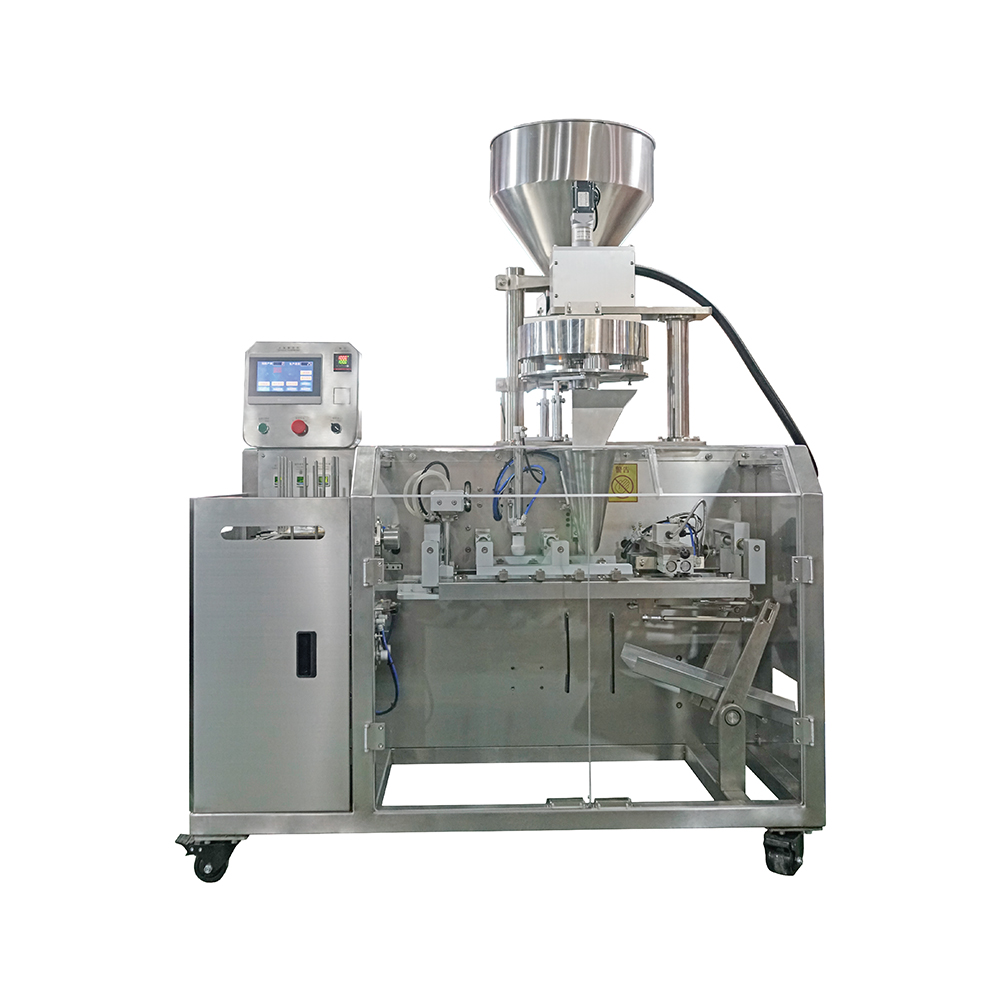

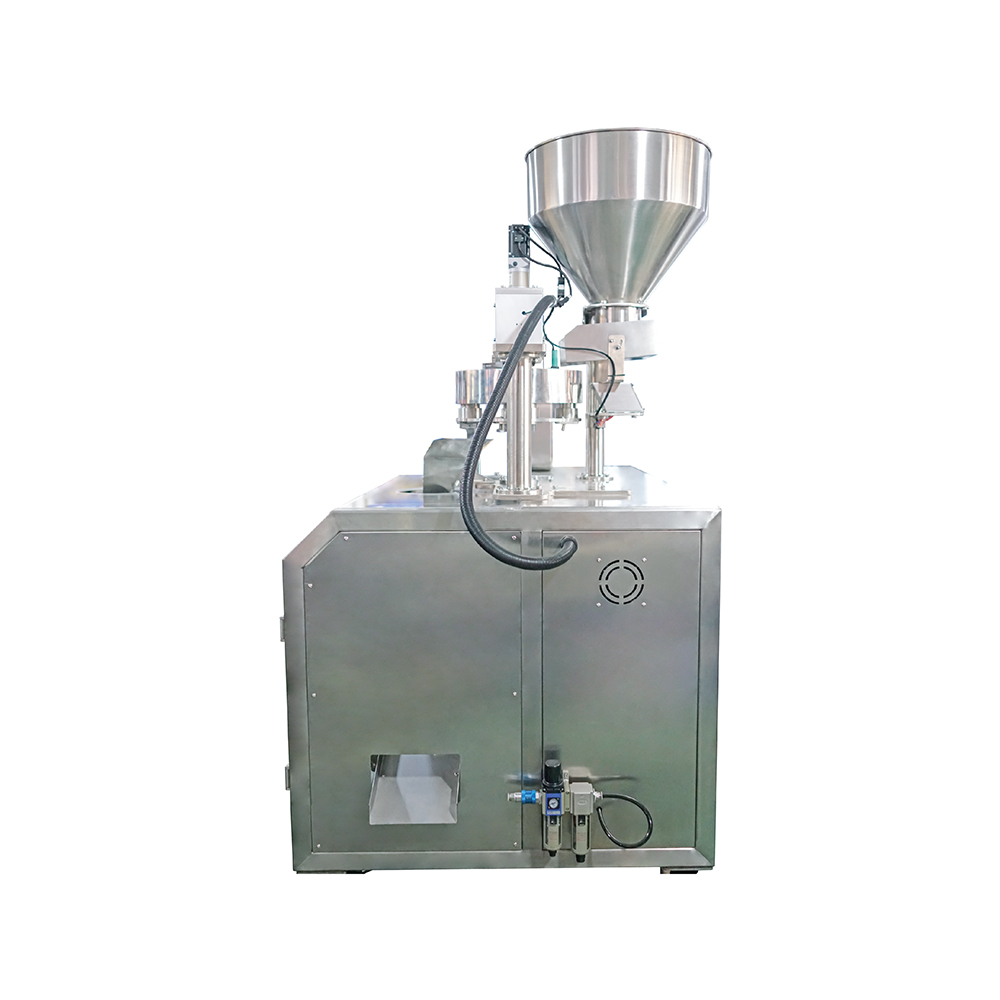

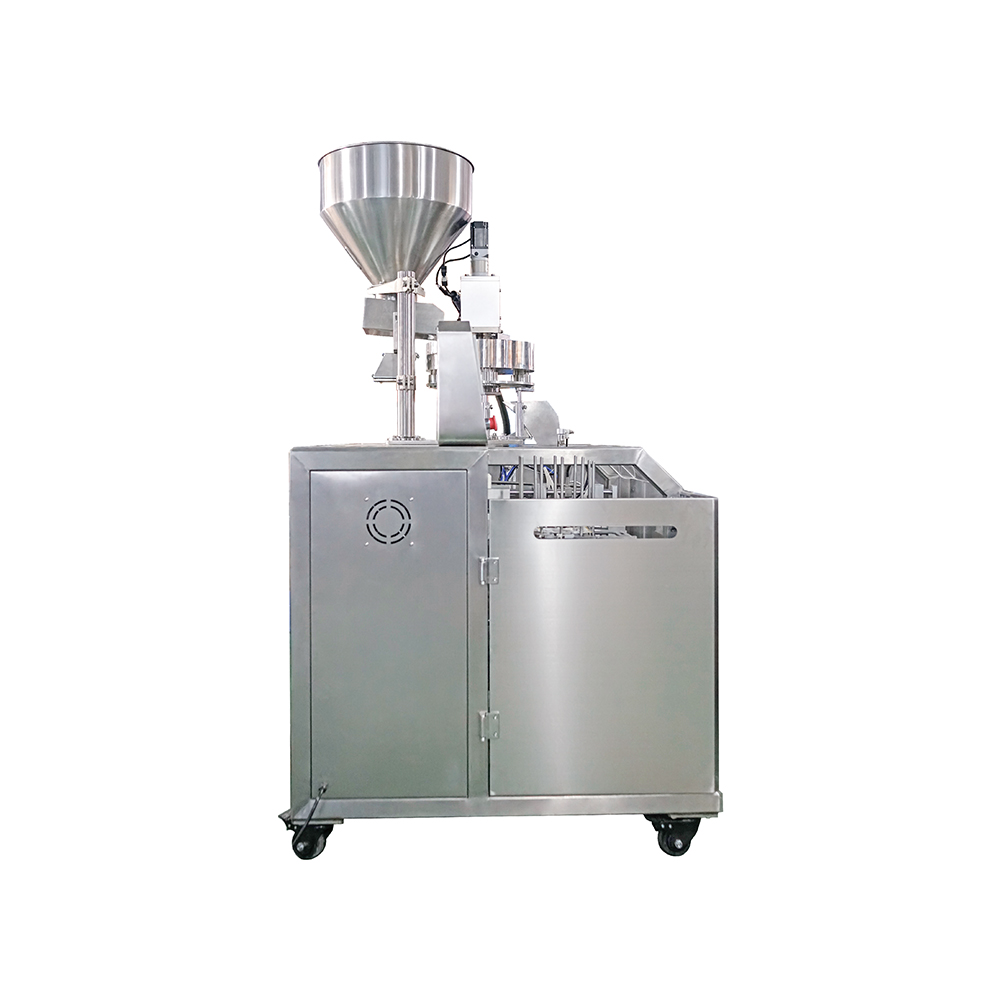

160K horizontal feeding bag granules packaging machine
1、It is suitable for the measurement and packaging of granules, powders, liquids, sauces and other items in the food industry.
2、The packaging process is fully automatic without manual operation.it can be vacuum, filled with nitrogen, combinedfeeding.Different blanking structures can be selected according to the nature of the filling material, and can be configured according to customer requirements to print batch number and other functions.
3、It adopts touch screen operation, PLC control, automatic compensation of sealing temperature, precise temperature control, and beautiful sealing.
4、Packing material: PE composite film, such as: pure aluminum, aluminum plating and other prefabricated bags.
Description
1、It is suitable for the measurement and packaging of granules, powders, liquids, sauces and other items in the food industry.
2、The packaging process is fully automatic without manual operation.it can be vacuum, filled with nitrogen, combinedfeeding.Different blanking structures can be selected according to the nature of the filling material, and can be configured according to customer requirements to print batch number and other functions.
3、It adopts touch screen operation, PLC control, automatic compensation of sealing temperature, precise temperature control, and beautiful sealing.
4、Packing material: PE composite film, such as: pure aluminum, aluminum plating and other prefabricated bags.
| Specification | Value |
|---|---|
| Measuring Scope | 20-500g |
| Prefab bag Length (L) | 80 - 240mm |
| Prefab bag Width (W) | 65 - 170mm |
| Packing Speed | 20 - 35bags / min |
| Dimension (L*W*H) | 1525 * 1048 * 1876 mm |
| Weight | 450 kg |
| Total Power | AC220V / 50 - 60Hz / 2.6kw |
| Gas source | ≥0.6Mpa |
