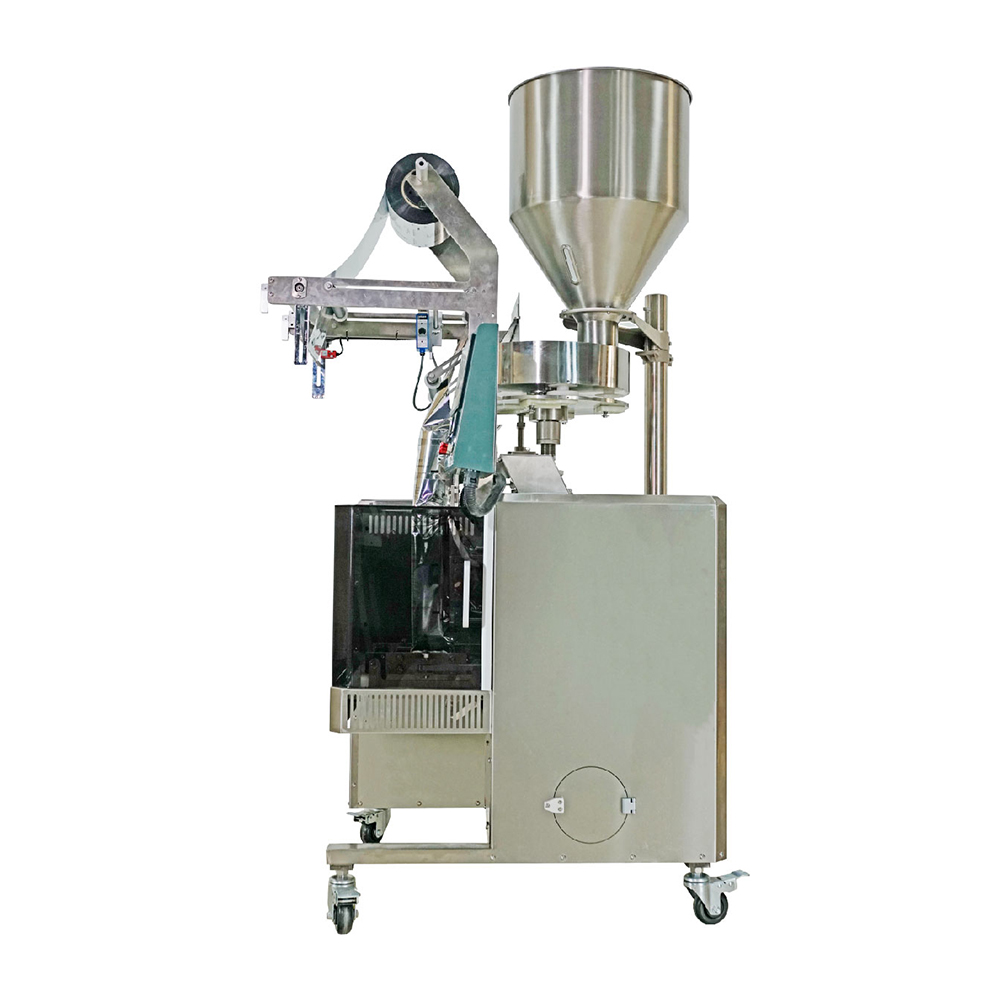

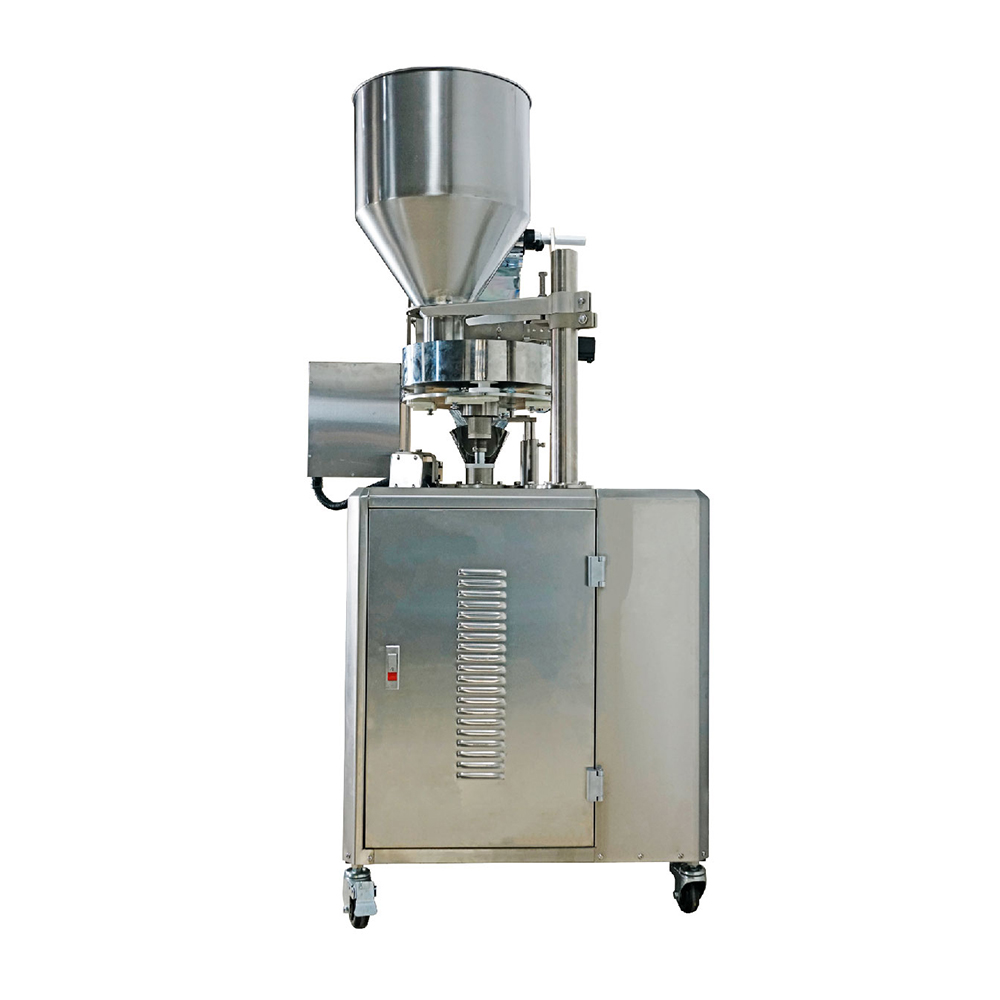

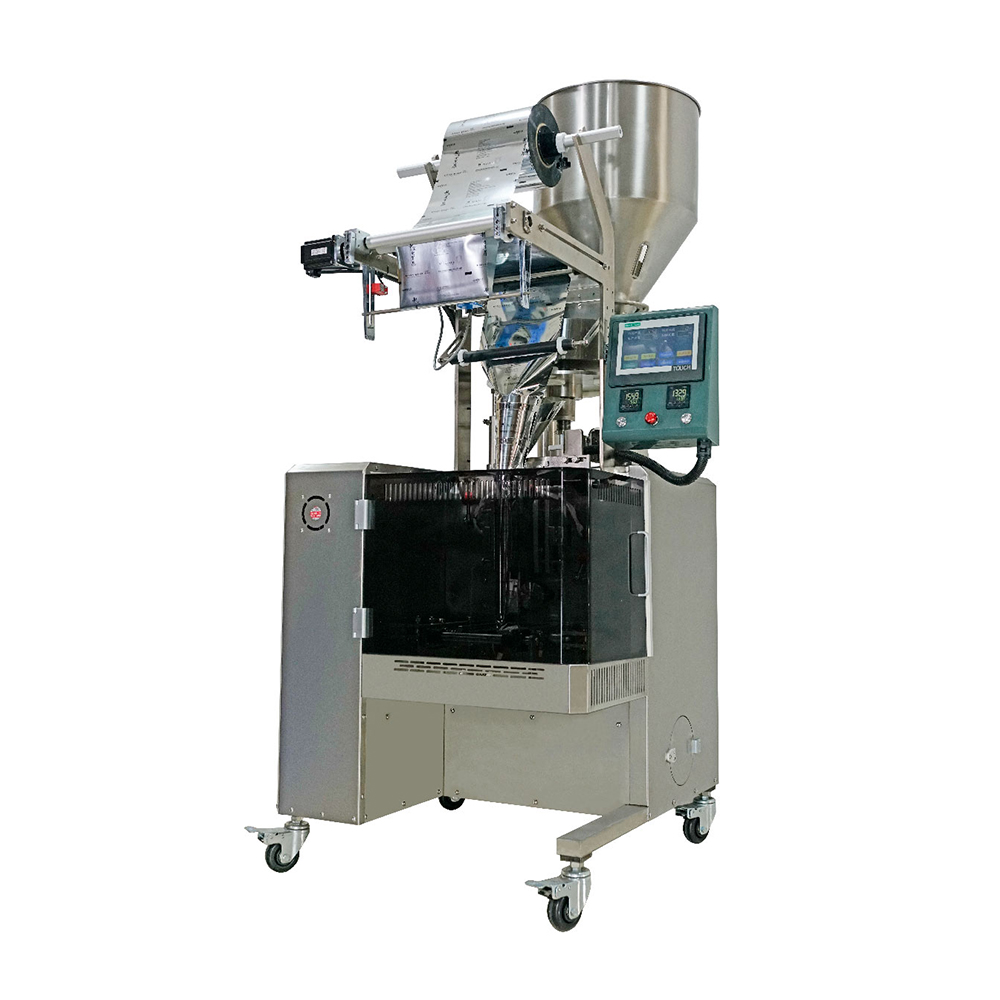

LT-61XBK back sealed granule packaging machine
1、The machine is suitable for the food, medicine, chemical industry, cosmetics industry of particles of measurement packing.
2、All the works of bag making,measuring,filling,sealing,cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.
3、The touch screen operation, PLC control, drive stepper motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.
4、Packing material：BOPP/Polyethylene, Aluminium/Polyethylene, Paper/Polyethylene, Polyester/Aluminizer/Polyethylene, Nylon/CPP and so on.
Description
1、The machine is suitable for the food, medicine, chemical industry, cosmetics industry of particles of measurement packing.
2、All the works of bag making,measuring,filling,sealing,cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.
3、The touch screen operation, PLC control, drive stepper motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.
4、Packing material：BOPP/Polyethylene, Aluminium/Polyethylene, Paper/Polyethylene, Polyester/Aluminizer/Polyethylene, Nylon/CPP and so on.

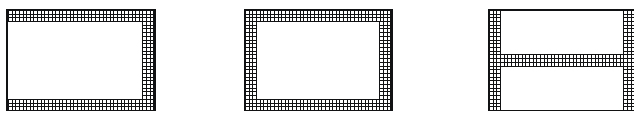

Three sides Sealing/ Four sides Sealing/ Back sealing
| Measuring Scope | 1 - 100 g（3 - 100 ml） |
| Bag Size(L*W) | 30 - 170 mm |
| 30 - 130 mm | |
| Packing Speed | 30 - 100 bags/min |
| Dimension (L*W*H) | 730 * 1000* 1780 mm |
| Weight | 235 kg |
| Total Power | 220V / 50Hz / 1.4kw |
