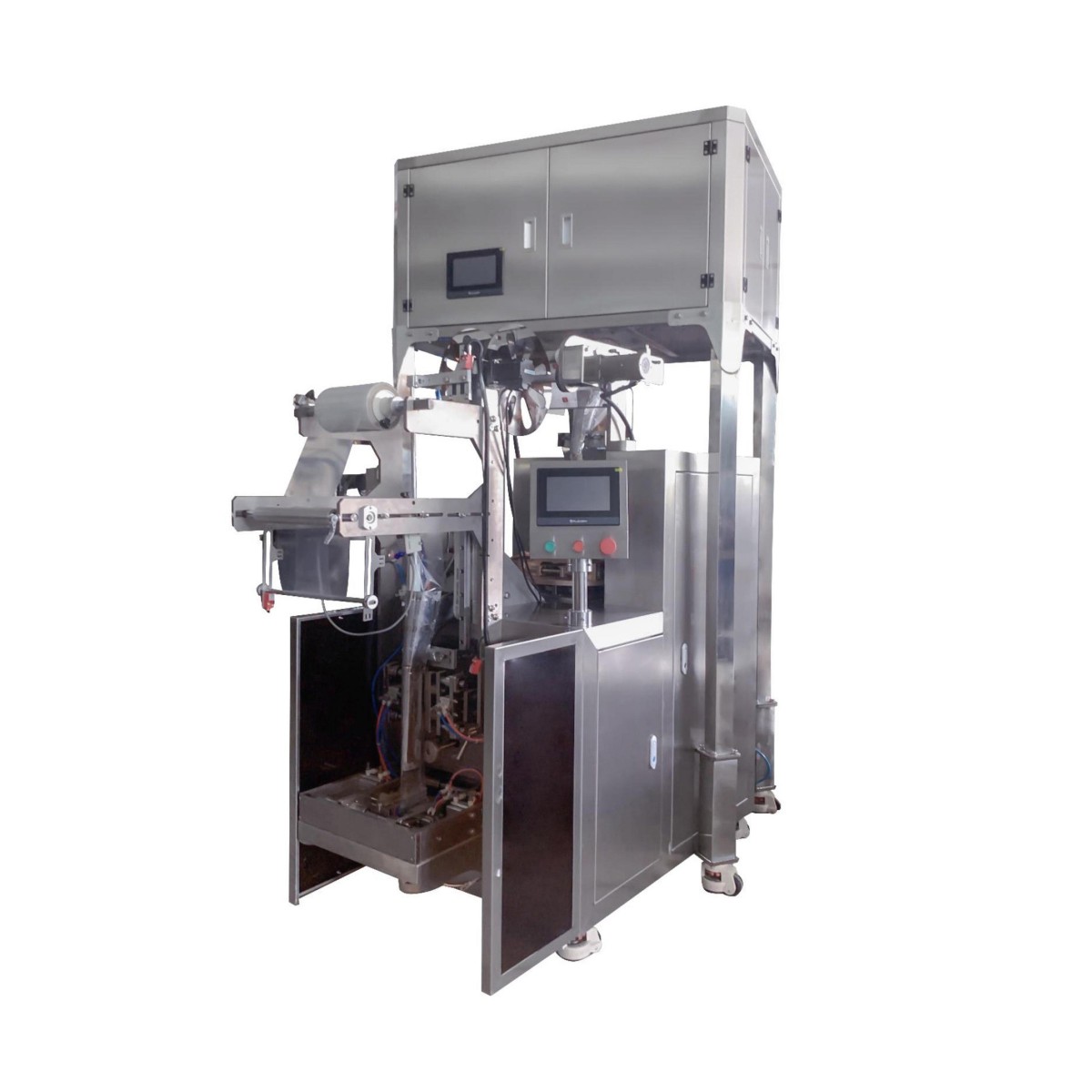

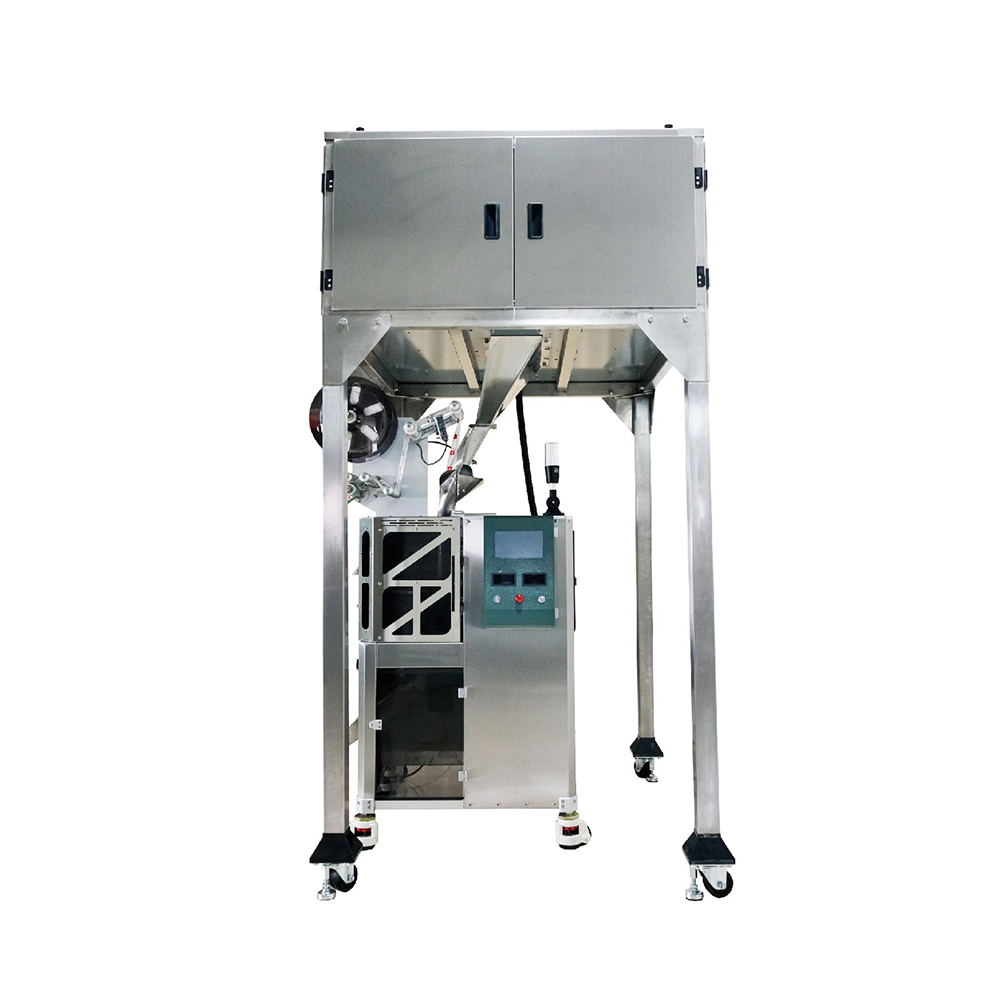

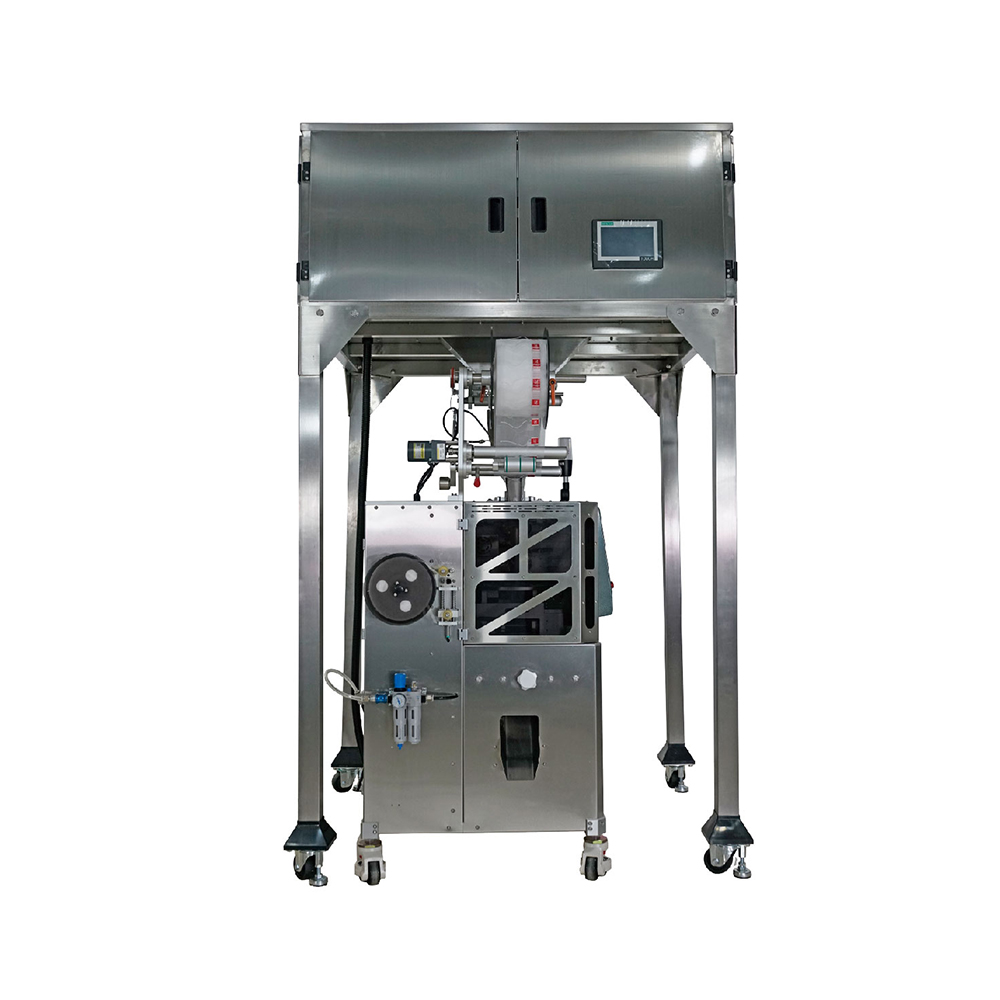

ZF90X high-speed nylon triangular bag packaging machine
The high-speed nylon triangle bag packaging machine is an advanced technology independently developed by our company. It is a high-quality and high-performance fully automatic packaging machine. This machine has the functions of automatic bag making, measuring (with electronic scale), filling, sealing, cutting, counting, etc. It adopts advanced microcomputer controller to drive stepper motor to control bag length and trademark positioning. The machine has stable performance, easy adjustment, accurate detection, and intelligent control with minimal stroke error. Corresponding electronic scale unloading mechanisms can be configured according to different materials. The whole machine is easy to operate and perfect, making it the preferred equipment for improving production efficiency, reducing labor intensity, and enhancing packaging quality in the food packaging industry.
Description
The high-speed nylon triangle bag packaging machine is an advanced technology independently developed by our company. It is a high-quality and high-performance fully automatic packaging machine. This machine has the functions of automatic bag making, measuring (with electronic scale), filling, sealing, cutting, counting, etc. It adopts advanced microcomputer controller to drive stepper motor to control bag length and trademark positioning. The machine has stable performance, easy adjustment, accurate detection, and intelligent control with minimal stroke error. Corresponding electronic scale unloading mechanisms can be configured according to different materials. The whole machine is easy to operate and perfect, making it the preferred equipment for improving production efficiency, reducing labor intensity, and enhancing packaging quality in the food packaging industry.
This machine is suitable for nylon triangle packaging machine, which is an automated precision equipment that can seal and package green tea, black tea, flower tea, coffee, health tea, traditional Chinese medicine tea, and granular triangle packaging. It is suitable for packaging in industries such as food, medicine, and tea.
This machine can be equipped with assembly lines, with stable performance and a wide range of applications.

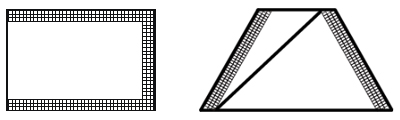

Three sides sealing
| Total Power | AC220V，50-60Hz ， 2.0Kw |
| air consumption | 180L/min（11m³/h） |
| compressed air | Min 0.5MPa |
| Thin film materials | Packaging film with or without cursor, heat sealable |
| Outer diameter of roll film | Max：320mm |
| Inner diameter of roll film paper core | 76mm |
| Packing Speed | 70-100 bags/min |
| Packaging film size | film width max：180mm |
| Dimension (L*W*H) | L1320mm×W1366mm×H2160mm(Customizable according to customer requirements) |
| Weight | 约260-410kg |
| environmental conditions | Relative humidity of 30% to 90%; The ambient temperature ranges from 0 ℃ to 40 ℃ |
| bag width | 40-90mm |
| bag length | 45-90mm |
