LK-100 High-Speed Premade Pouch Vacuum Packaging Machine​

High-Speed Packaging Machine Highlights

  • 1. High-Speed Continuous Output: Dual-rotary unit design (filling & vacuum) ensures faster cycles and high-speed production.
  • 2. Smart Siemens Control: Equipped with Siemens PLC & HMI touch screen for intuitive operation and precise control.
  • 3. Zero Waste & Auto Alarm: "No product, no seal" function recycles empty pouches, with automatic screen alarms for sealing failures.
  • 4. Premium Vacuum & Chamber: Features a German-brand vacuum pump, igus rotary union, and an aviation-grade aluminum vacuum chamber.
  • 5. Food-Grade & Fast Changeover: 304 stainless steel contact parts ensure hygiene, while one-step bag width adjustment allows quick size changeovers.

Description

Technical parameters:

ModelLK-100 High-Speed Bag-Feeding Vacuum Packaging Machine​
Packaging MaterialsAluminum foil bags, four-side sealed bags, paper bags, and other composite bags
Packing Bag SizeWidth: 55-100mm, Length: 80-190mm
Packing Speed90-110 bags per minute
Overall Dimension2900x1480x1600mm(Length × Width × Height)
Machine Weight2500KG
Compressed Air Consumption≥0.8 cubic meters per minute (Compressed air to be provided by the user)

Scope of application:

Various pre-made bag products, including agricultural products, daily necessities, food, condiments, medicine, hardware, electronic products, and agricultural products.

Main optional configuration:

Material metering and filling machine, work platform, weight sorting scale, material elevator, finished product conveyor elevator, metal detector, and coding machine.

Main standard components:

  • 1. Bag Feeding System
  • 2. PLC Control System
  • 3. Bag Opening Device
  • 4. Feeding & Discharging System
  • 5. Cleaning System
  • 6. Transition Transfer System
  • 7. Vacuum System
  • 8. Vacuum Diversion Control System
  • 9. Heat Sealing Control System
  • 10. Discharging Output System
  • 11. Vacuum Chamber

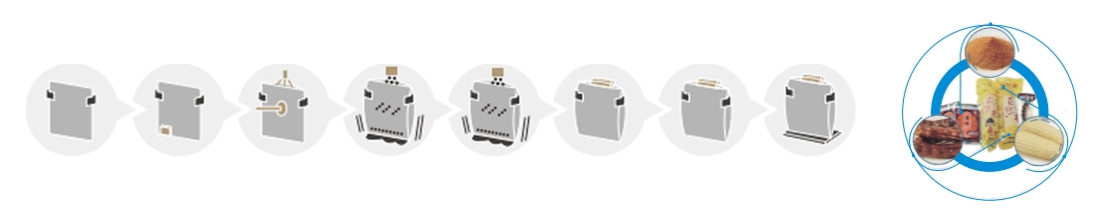

Workflow
