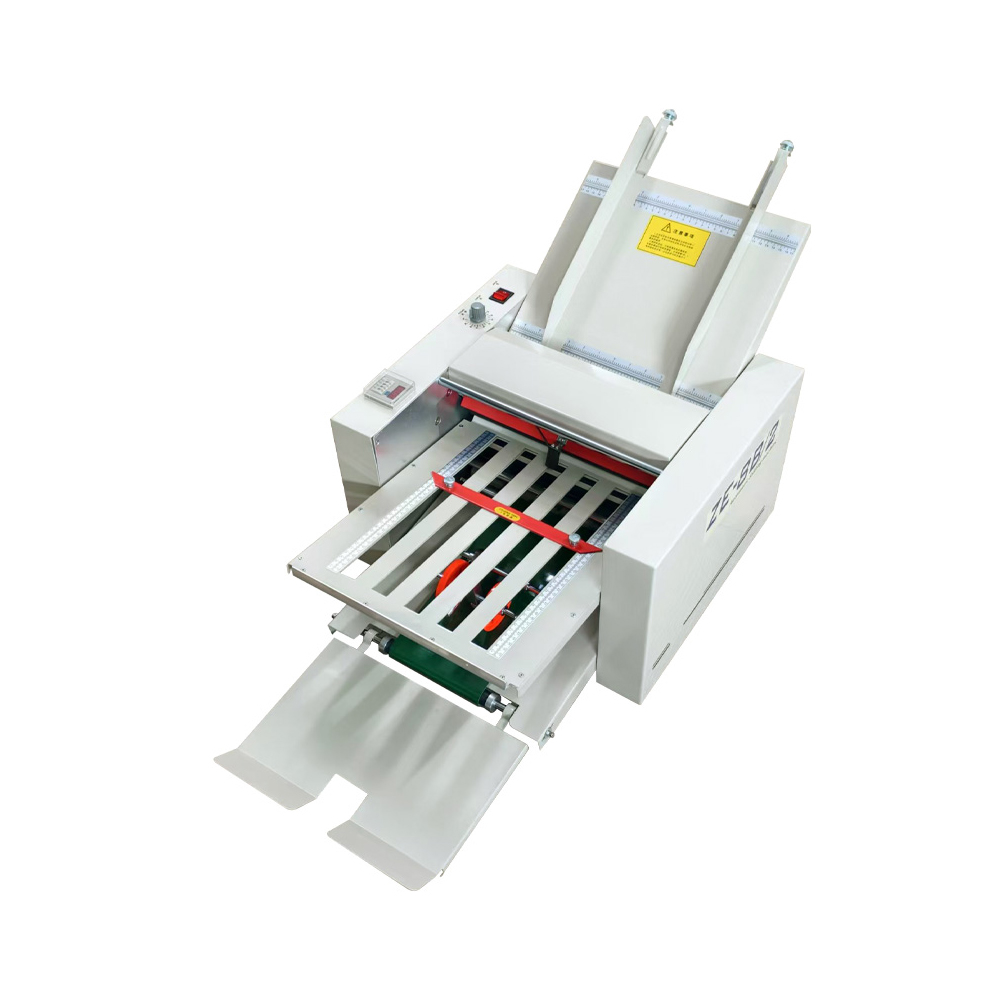

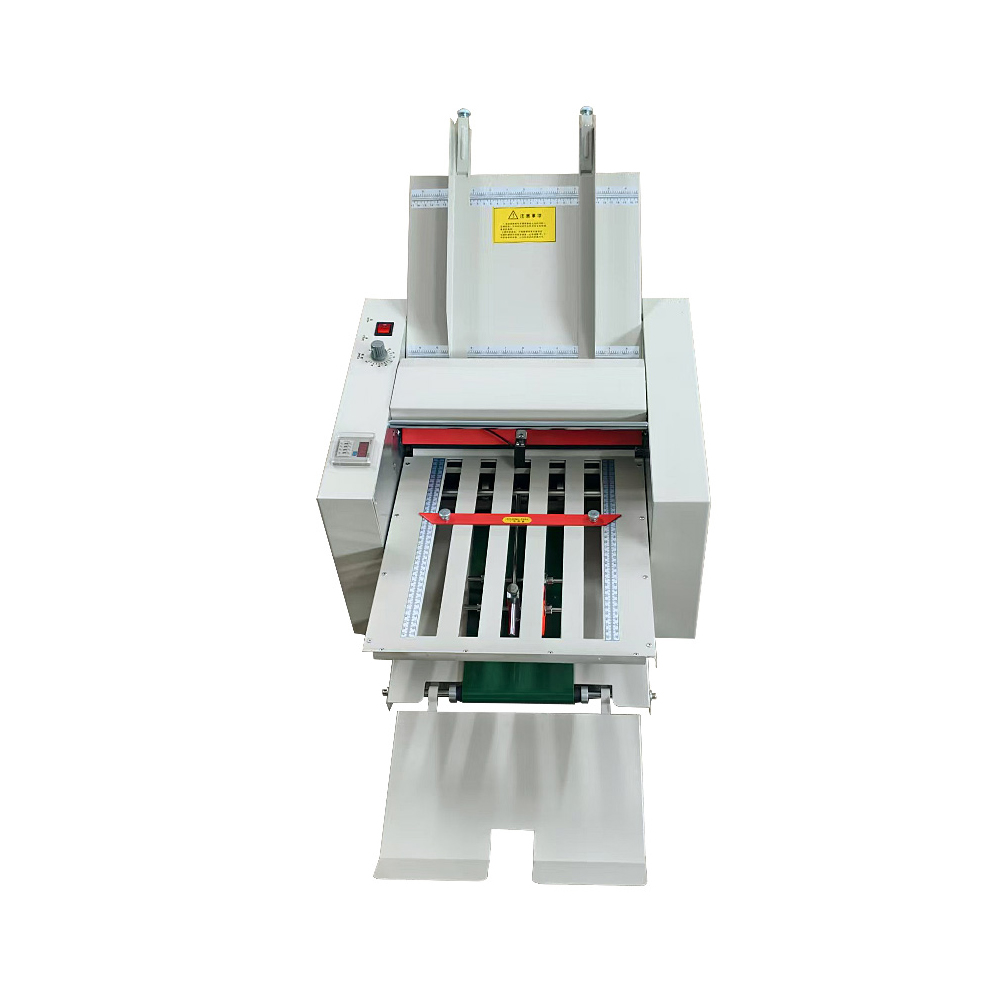

ZE-8B/2 Packaging equipment
The ZE-8B/2 Paper Folding Machine is a reliable, space-saving device for precisely folding large-format documents, brochures, and promotional materials. It supports dual voltage (AC 220/50 or 110/60V/Hz) with 50W power, featuring 2 folding trays that handle paper sizes from 50×70mm to 310×700mm and thicknesses from 40g to 125g. With a speed of up to 80m/min, its compact, 35kg design (1050×525×505mm) is ideal for offices, print shops, and marketing teams needing consistent, professional folds for large-format materials.
Description
The ZE-8B/2 Paper Folding Machine is a reliable, space-saving solution tailored for precise folding of large-format documents, brochures, and promotional materials.
It operates on a dual-voltage AC 220/50 or 110/60V/Hz power supply with a 50W output, ensuring stable performance worldwide. Equipped with 2 folding trays, it handles a wide range of paper sizes from 50×70mm to 310×700mm and thicknesses from 40g to 125g, making it suitable for both small and large print jobs. With a maximum folding speed of 80m/min, it delivers efficient throughput for daily and medium-volume tasks. Its compact design (1050×525×505mm) and lightweight 35kg build ensure easy placement in offices, print shops, and marketing departments.
This user-friendly machine is ideal for producing consistent, professional-quality folds for large-format materials in a streamlined footprint.
| Model | ZE-8B/2 | ZE-9B/2 | ZE-8B/4 | ZE-9B/4 |
| Voltage | AC 220/50 110/60V/Hz | |||
| Power | 50w | |||
| Folding Tray Number | 2 | 2 | 4 | 4 |
| Max.paper Size | 310x700mm | 210x400mm | 310x700mm | 210x700mm |
| Min.Paper Size | 50x70mm | |||
| Max.paper Thickness | 125g | |||
| Min.Paper Thickness | 40g | |||
| Max.Speed | 80m/min | |||
| Dimension | 1050x525x505mm | 1020x425x525mm | 1080x530x580mm | 1020x430x580mm |
| Net Weight | 35kg | 30kg | 48kg | 38kg |
