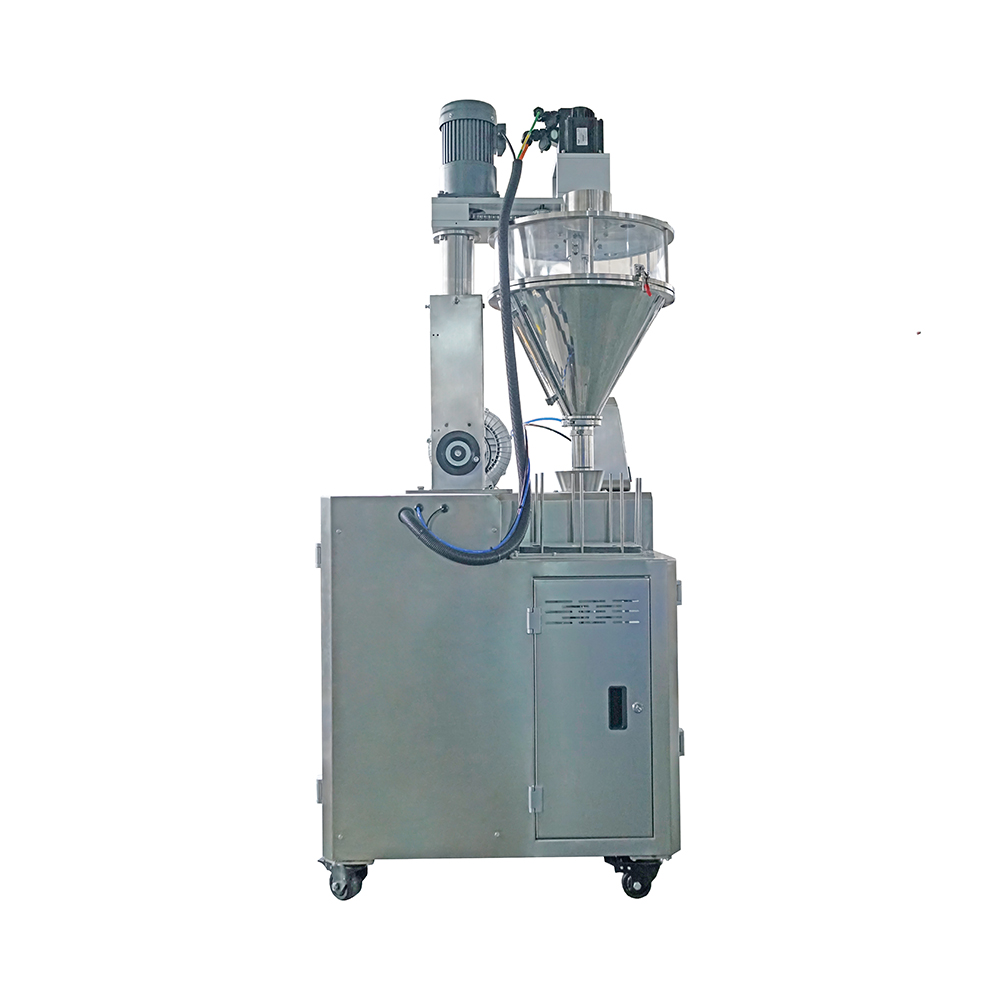

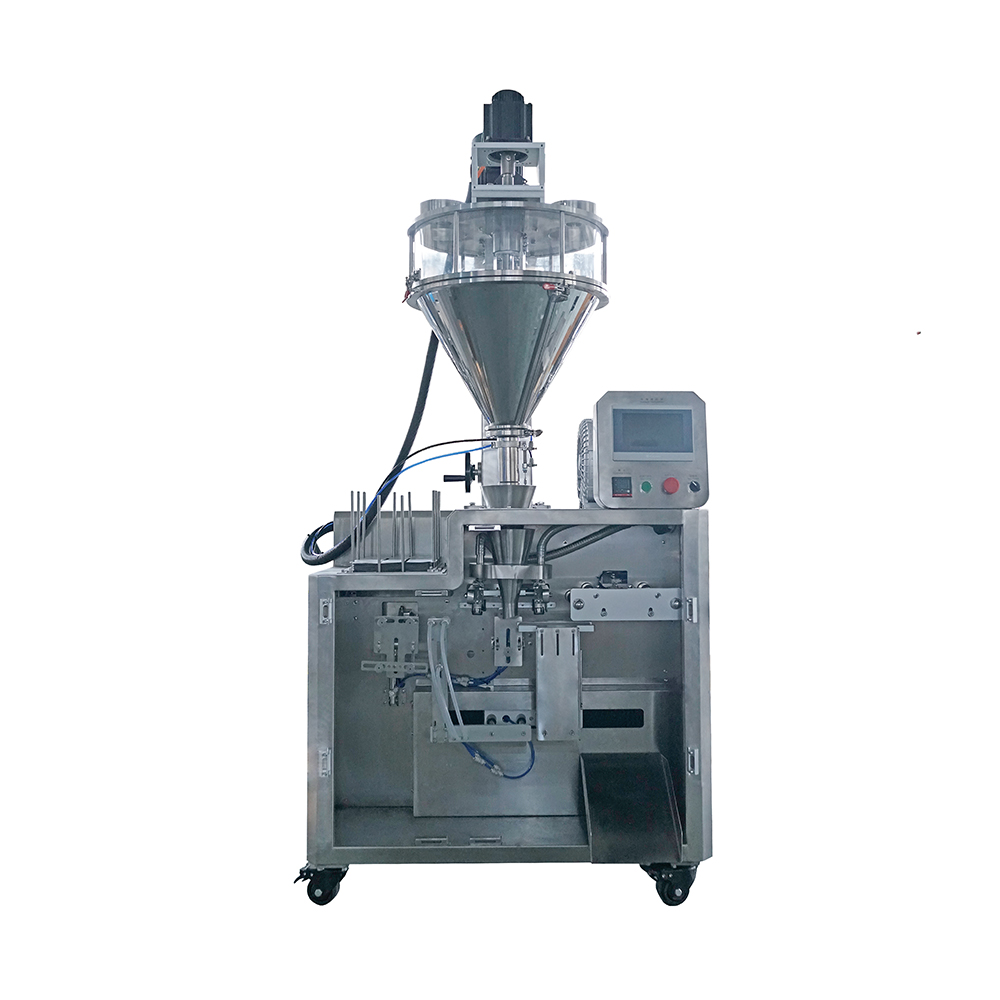

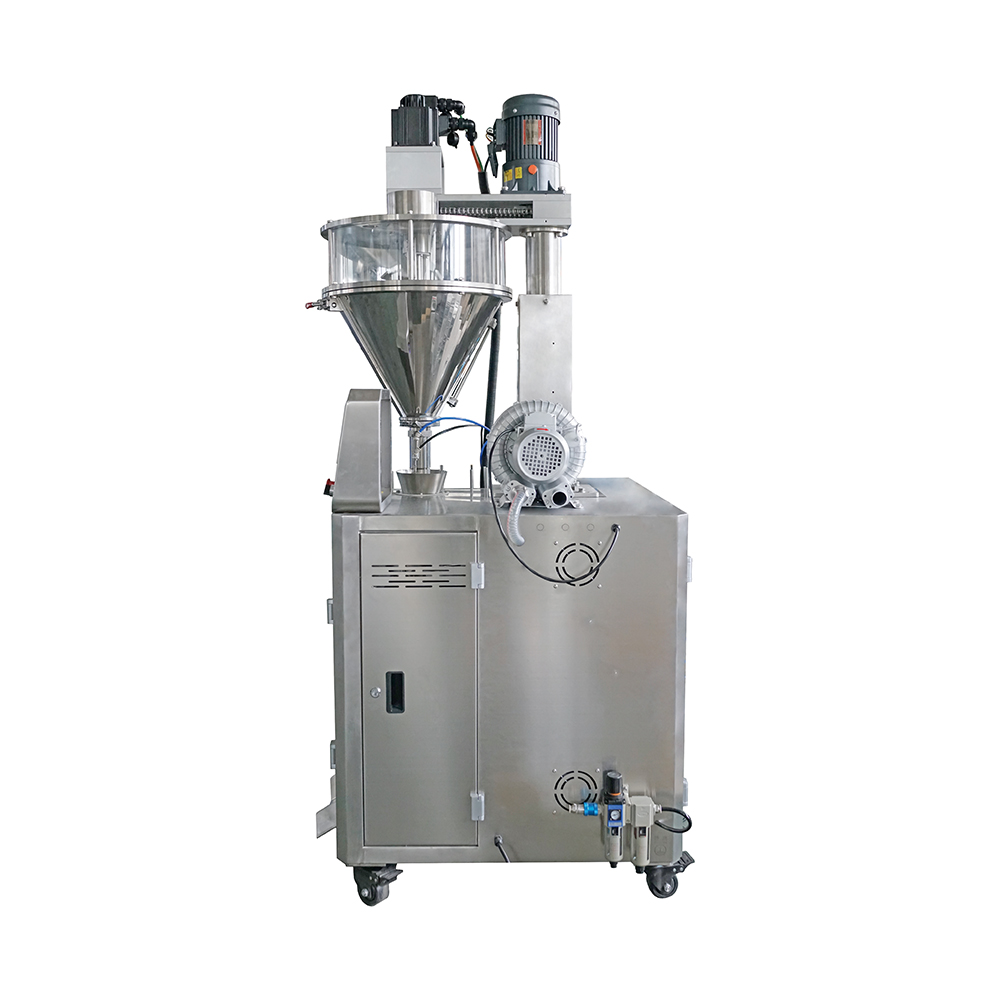

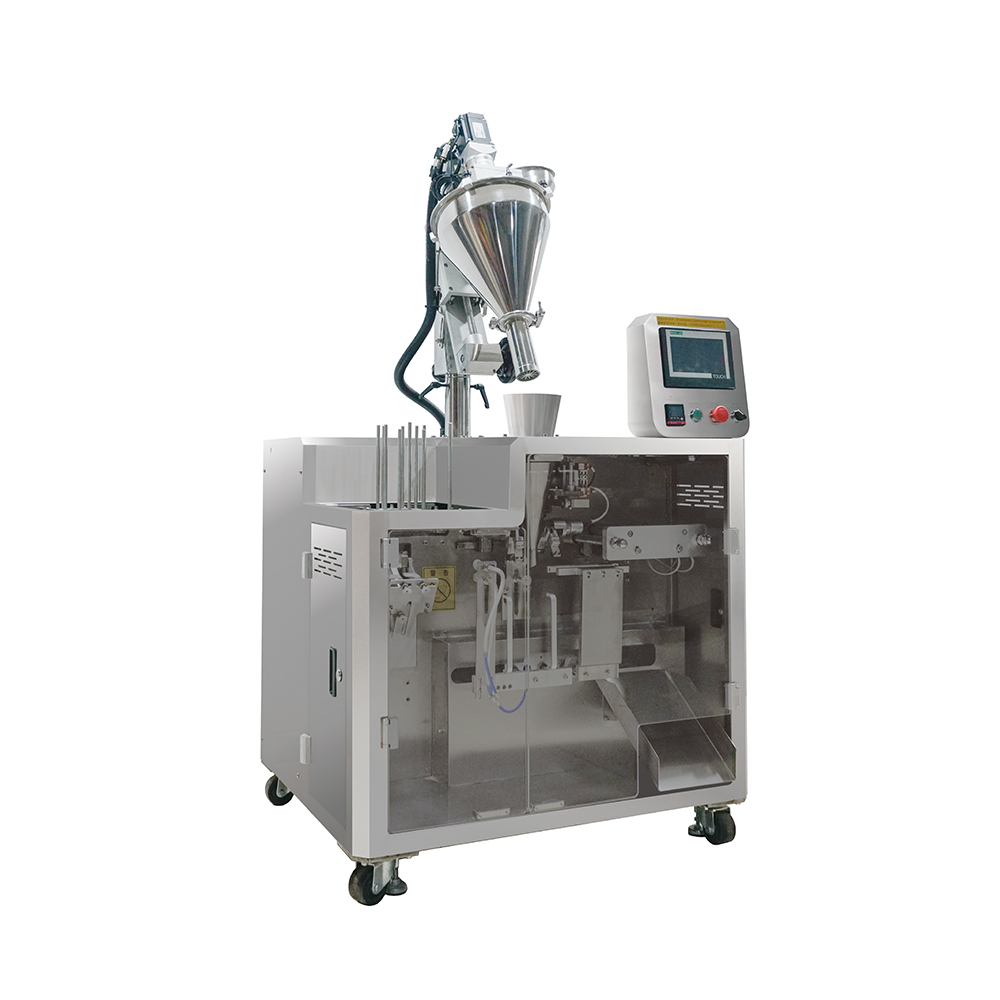

LT-SP200 bag type vertical screw powder packaging machine

1、It is suitable for the measurement and packaging of granules, powders, liquids, sauces and other items in the food industry.

2、Convenient debugging, small space. The packaging process is fully automatic without manual operation. Different feeding structures can be selected according to the nature of filling materials .

3、It adopts touch screen operation, PLC control, automatic compensation of sealing temperature, precise temperature control, and beautiful sealing.

4、Packing material: PE composite film, such as: pure aluminum, aluminum plating and other prefabricated bags.

Description

Characteristic

1、It is suitable for the measurement and packaging of granules, powders, liquids, sauces and other items in the food industry.

2、Convenient debugging, small space. The packaging process is fully automatic without manual operation. Different feeding structures can be selected according to the nature of filling materials .

3、It adopts touch screen operation, PLC control, automatic compensation of sealing temperature, precise temperature control, and beautiful sealing.

4、Packing material: PE composite film, such as: pure aluminum, aluminum plating and other prefabricated bags.

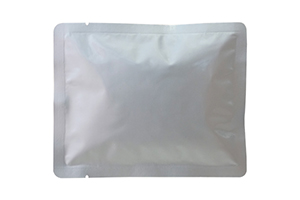

Sealing Type

Prefab bag

Technical Parameters

Measuring Scope200-1000g
Preformed bag(Max)L:280mm
W:200mm
Packing Speed15 - 25bags / min
Dimension (L*W*H)1091 * 926 * 1990 mm
Weight370 kg
Total PowerAC220V / 50 - 60Hz / 2.2kw
