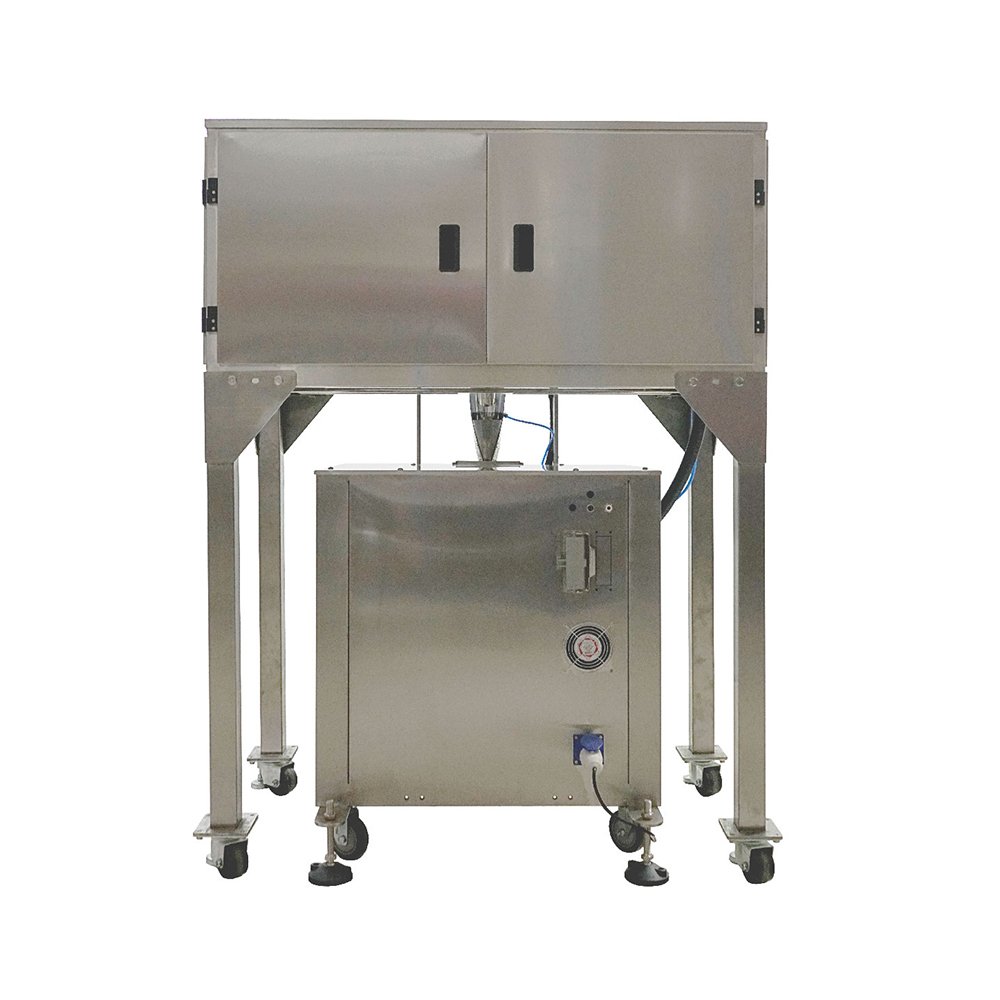

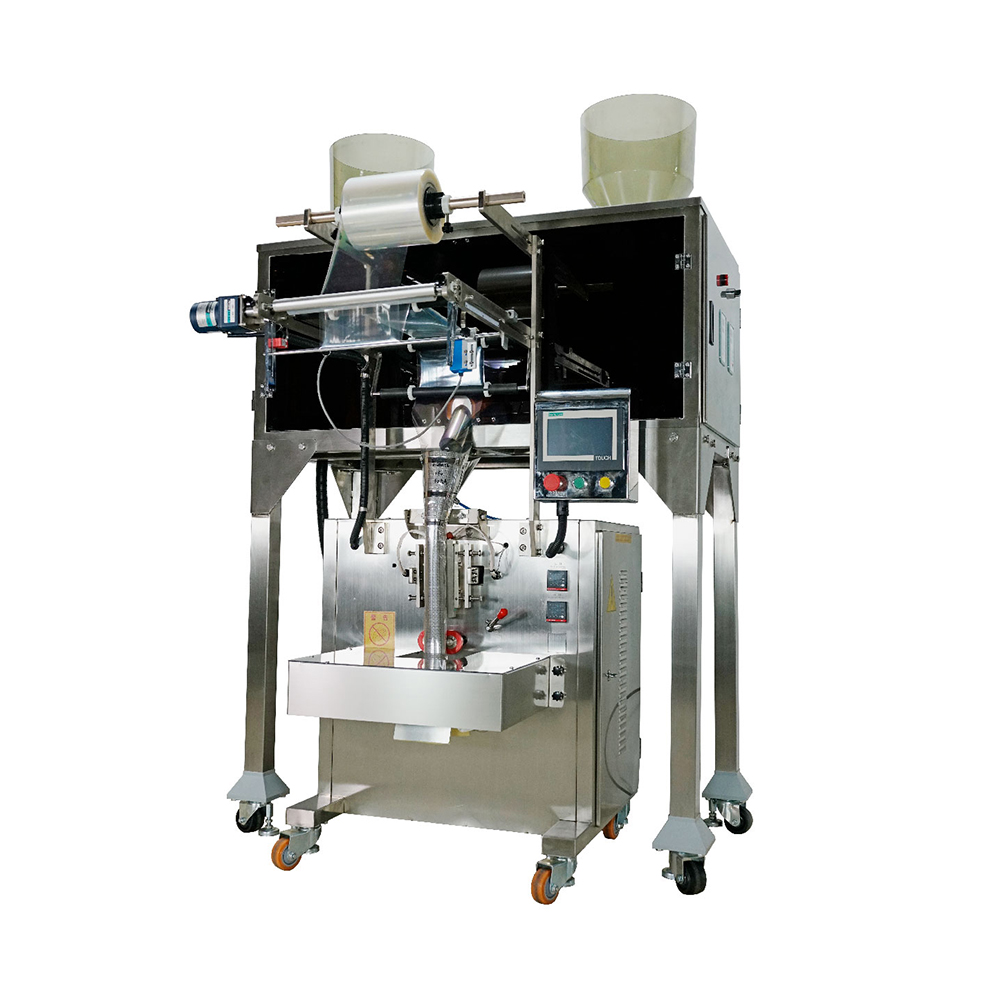

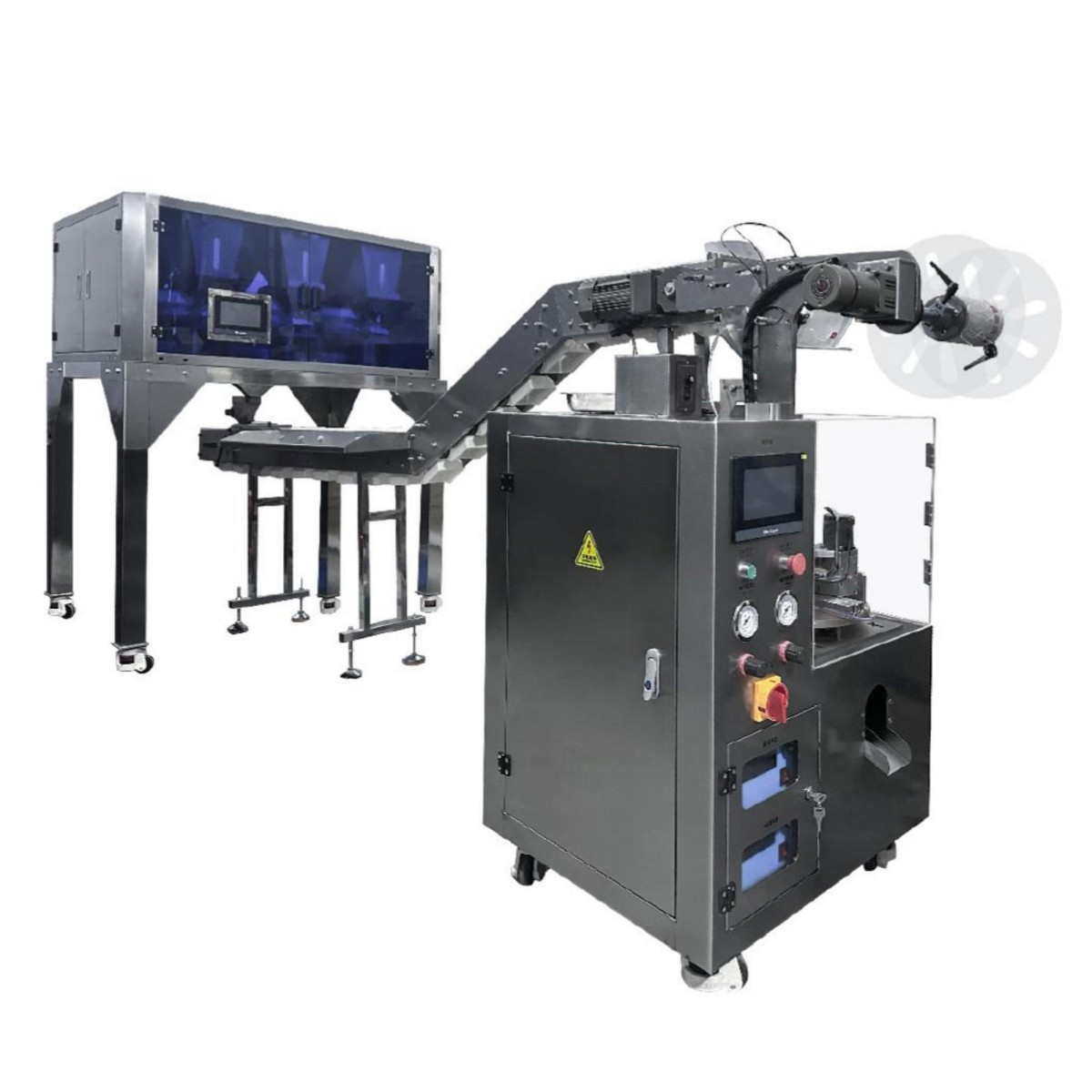

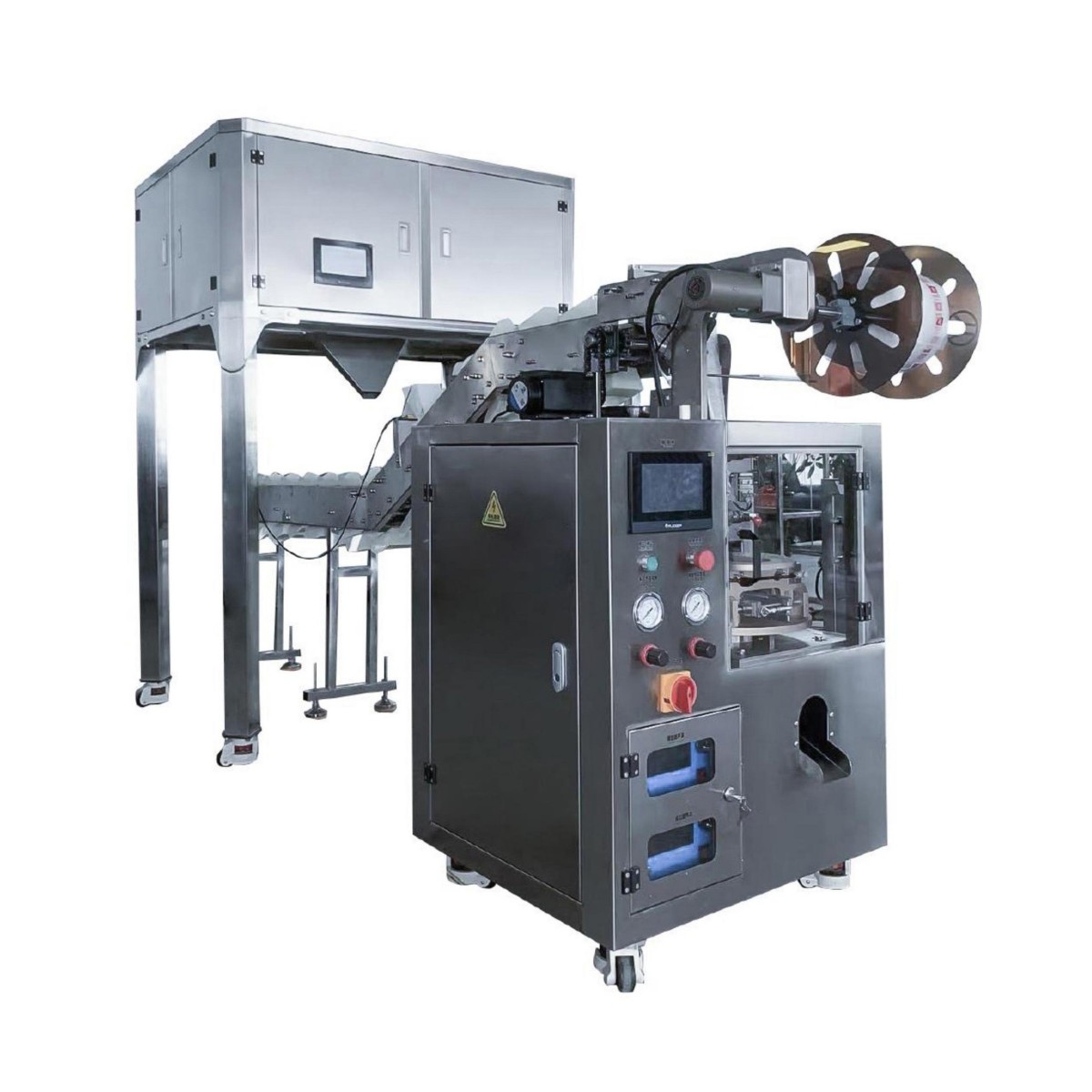

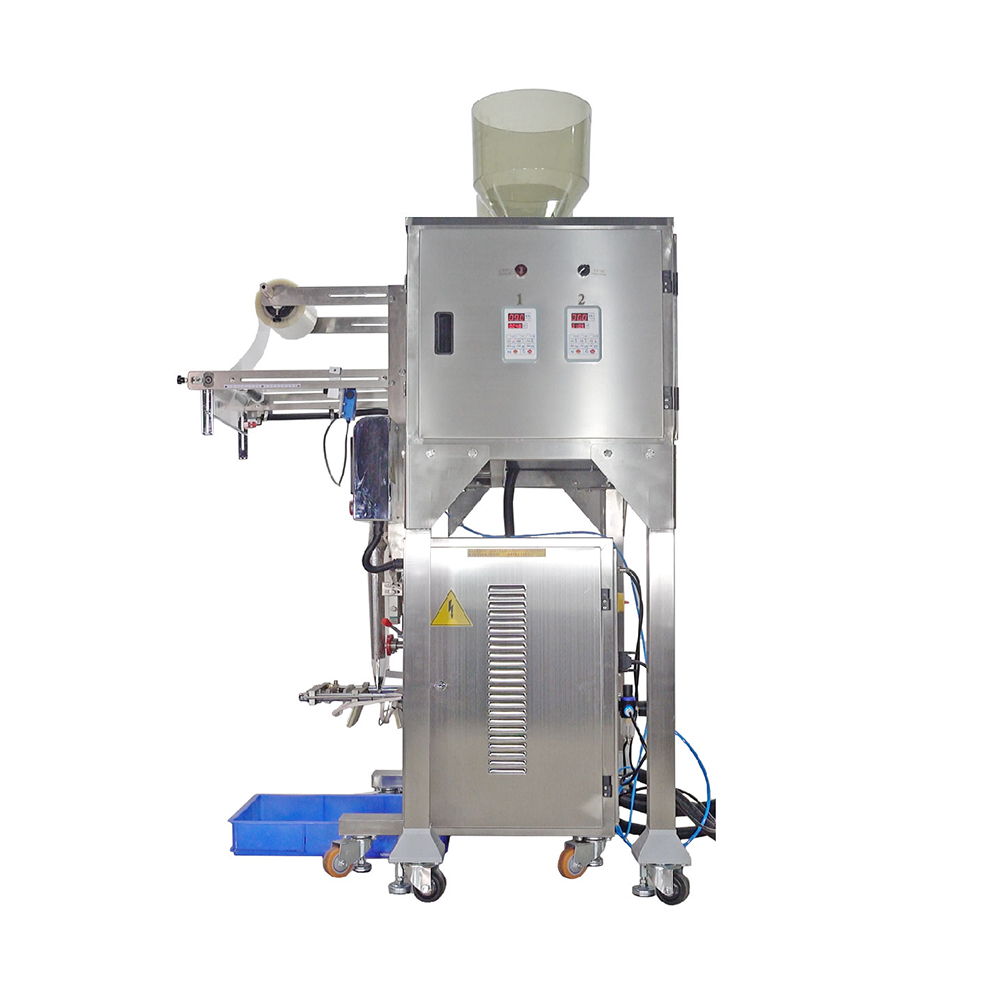

LT-60II02-06 New Ver Tea packing machine(Electronic scale)
1、The machine is suitable for the food, medicine, chemical industry, cosmetics industry of powder of measurement packing.
2、All the works of bag making,measuring,filling,sealing,cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.
3、The touch screen operation, PLC control, drive stepper motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.
4、Packaging materials：composite film.
Description
1、The machine is suitable for food,medicine,chemical products of granule,short strip,flake solid type such as: puffed food,shrimp,peanut,opcorn,oatmeal melon seeds,sugar and various material.
2、All the works of bag making,measuring,filling,sealing,cutting,and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.
3、The touch screen operation, PLC control, drive stepper motor to control the bag length,stable performance,easy to adjust and accurate detection.
4、Packaging materials：composite film.

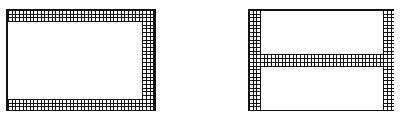

Three sides sealing/back sealing
| Measuring Scope | 1- 100g |
| Bag Size(L*W) | 30 - 170 mm |
| 30 - 130 mm | |
| Packing Speed | 20 - 80 bags/min |
| Dimension (L*W*H) | 1284*1387*2099 mm |
| Weight | 250 kg |
| Total Power | 220V/ 50Hz /1.5kw |
| Gas source | ≥ 0.6Mpa |
