LK-200 bag-feeding vacuum packaging machine
Automatic bag width adjustment; mechanical transmission; flexible conversion of feeding system; automatic lubrication oil system; faster and more perfect vacuum degree.

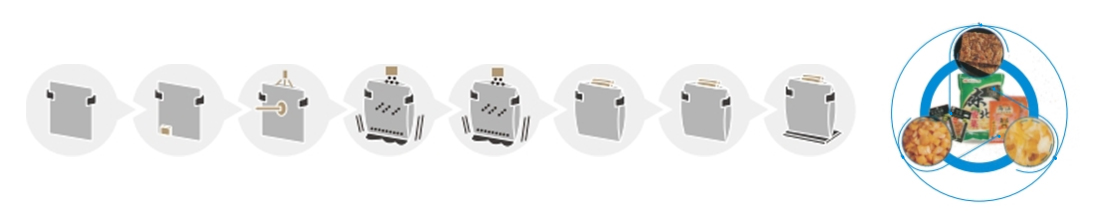

The automatic pouch packaging machine consists of two rotating units (the filling system and the vacuum system), with the vacuum system operating via continuous rotary motion.
It allows for quick changeovers between different bag sizes; the width of the automatic bag-feeding device can be adjusted automatically in one single step.
The machine complies with food processing hygiene standards. Parts in contact with materials or packaging bags are made of 304 stainless steel or other materials meeting food safety requirements to ensure hygiene and safety.
For user-friendly operation, it is equipped with a Siemens PLC and HMI (touch screen) electrical control system, featuring an intuitive human-machine interface. It features a "no product, no seal" function, allowing empty pouches to be recycled without wasting bags.
It includes a sealing temperature monitoring function; if a heating element fails, an alarm is automatically triggered on the touch screen.
The sealing method utilizes instant heating and water cooling to achieve flat, smooth, and aesthetically pleasing seals.
The vacuum chamber is CNC-machined from aviation-grade aluminum to ensure optimal sealing performance and durability.
The vacuum system employs a German-brand vacuum pump and an igus rotary union to guarantee perfect vacuum results for every package.
Description
| Model | LK-200 bag-feeding vacuum packaging machine |
| Packaging Materials | Aluminum foil bags, four-side sealed bags, paper bags, and other composite bags |
| Packing Bag Size | Width: 90-200mm, Length: 150-300mm |
| Packing Speed | 10-40 bags per minute |
| Overall Dimension | 3000x2450x1600mm(Length × Width × Height) |
| Machine Weight | 2900KG |
| Compressed Air Consumption | ≥0.8 cubic meters per minute (Compressed air to be provided by the user) |
Various pre-made bag products, including agricultural products, daily necessities, food, condiments, medicine, hardware, electronic products, and agricultural products.
Material metering and filling machine, work platform, weight sorting scale, material elevator, finished product conveyor elevator, metal detector, and coding machine.
