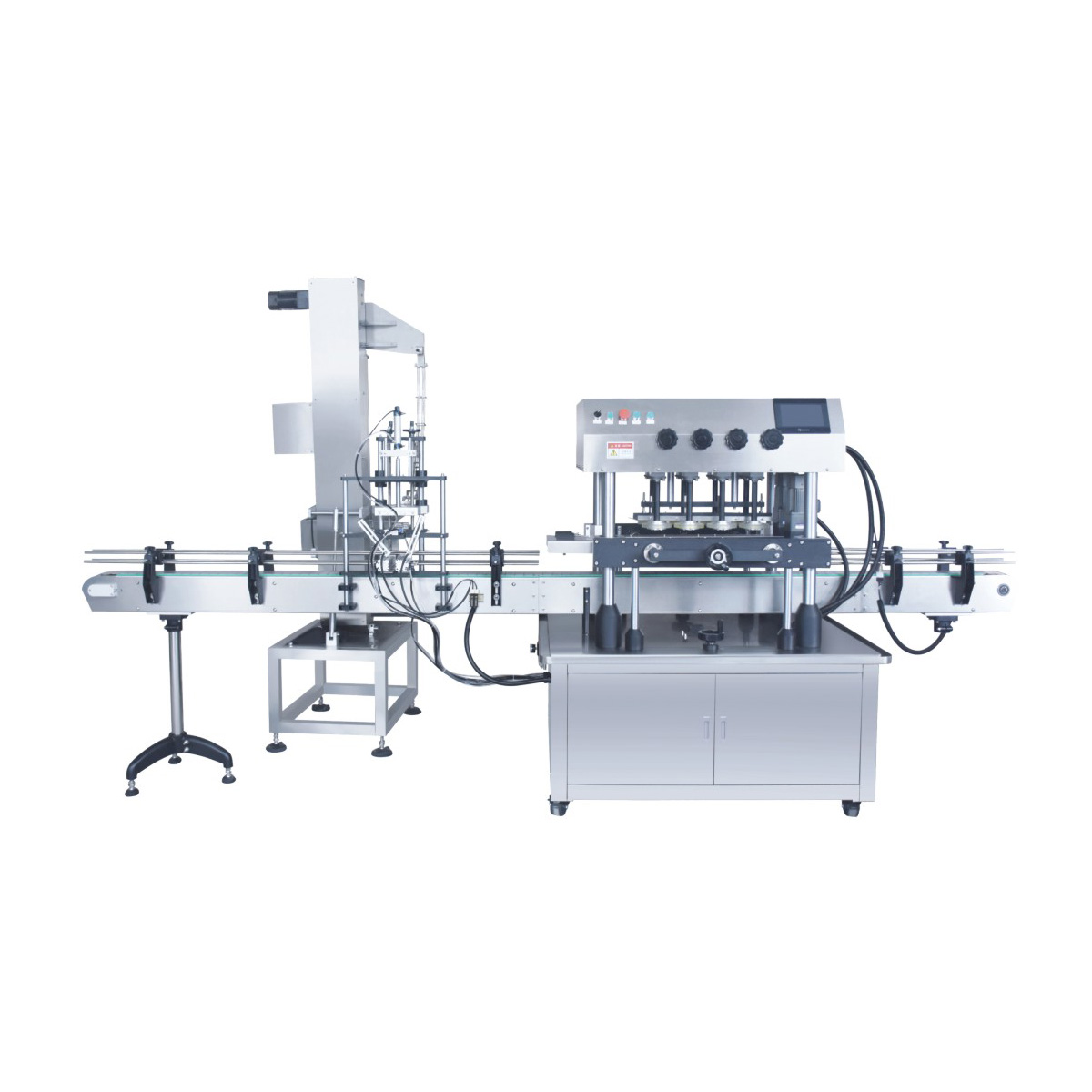

8 Rounds Online-Continuous Twist Capping Machine
1、This machine has high degree of automation as it integrates auto arranging,puting up and screwing cap.
2、Capping torauce can be set according to requirements.
3、With a small number of parts replacing like mould, auto capping can be suitable for different sizes of bottles.
4、There are inverted rotation and a pre-rotation function for putting up caps to ensure accurate capping and high capping pass rate.
5、The shell,frame,main structure,etc.of the machine are mainly made from 340# stainless steel so it is with beautiful appearance.
6、For this machine PLC with man-machine interface(touching screen)control was adopted,and for the main elecrical and pneumatic componets we choose domestic well-known brands to ensure stable performance.
Description
1、This machine has high degree of automation as it integrates auto arranging,puting up and screwing cap.
2、Capping torauce can be set according to requirements.
3、With a small number of parts replacing like mould, auto capping can be suitable for different sizes of bottles.
4、There are inverted rotation and a pre-rotation function for putting up caps to ensure accurate capping and high capping pass rate.
5、The shell,frame,main structure,etc.of the machine are mainly made from 340# stainless steel so it is with beautiful appearance.
6、For this machine PLC with man-machine interface(touching screen)control was adopted,and for the main elecrical and pneumatic componets we choose domestic well-known brands to ensure stable performance.
| Speed | 20-100pcs/min |
| Cap's diameter | Φ15-Φ60mm |
| Bottle's diameter | Φ35-Φ140mm |
| Bottle's height | 38-250mm |
| Power | 1.5kw |
| Net weight | 2000x850x1800mm |
| Weight | 550kg |
