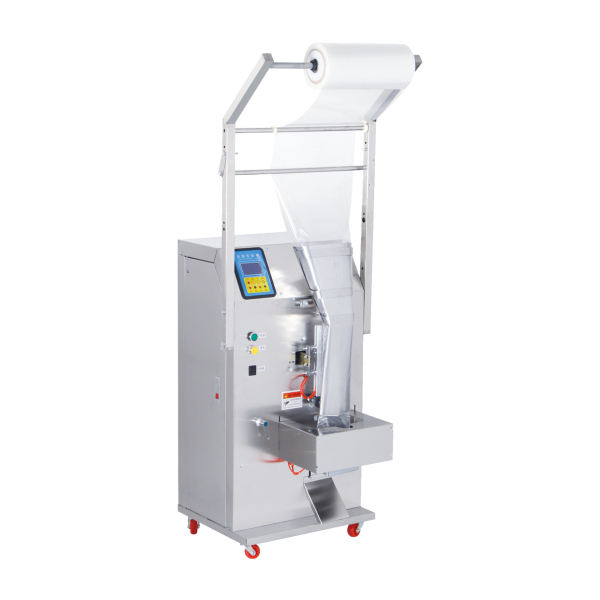

LK-300C-II Twins packaging machine

1.It can automatically complete bag making, metering, feeding, sealing, slitting and counting, and can be equipped with functions such as batch number printing according to customer requirements.

2.The 7-inch touch screen English operation, simple operation, intuitive, PLC control system, more stable operation, servo motor control bag length, bag length convenient and stable setting, stable performance, convenient adjustment, accurate detection. Intelligent temperature controller PID automatically adjusts the temperature control, the temperature error range is controlled within 1°C.

3.The parts of the equipment in contact with the materials are made of 304stainless steel or other materials that meet food hygiene requirements, ensuring the hygiene and safety of the food. The detachable fully stainless steel filling machine has stable filling performance, fast measurement accuracy, and can be equipped with functions such as stirring, heating, and liquid level detection according to the characteristics of the materials.

Description

For:

Suitable for the quantitative packaging of various paste-like products in the food, pharmaceutical and industrial industries, such as tomato sauce, honey, chili oil, syrup, etc.

Technical parameters:

ModelLK-300C-II
Bag SizeLength 30-210mm, Width 45-300mm
Sealing TypeFour-side seal / Three-side seal (customizable)
Blanking MethodPump feeding (customizable)
Packing Speed40-70 bags/min (depending on material)
Measuring Scope10-100 ml (depending on material)
Total Power220V / 50Hz / 2.5KW
Weight420 KG
Overall Dimension1330 × 1490 × 1900 mm
